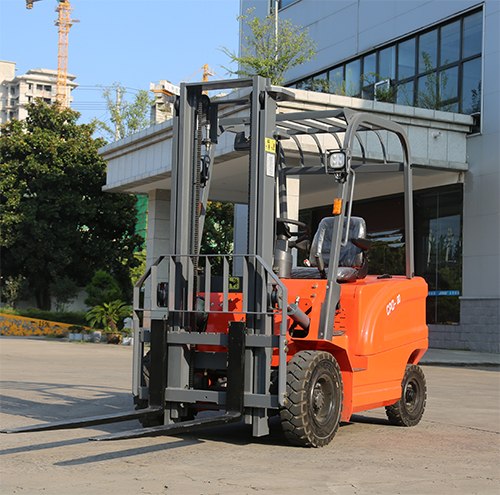

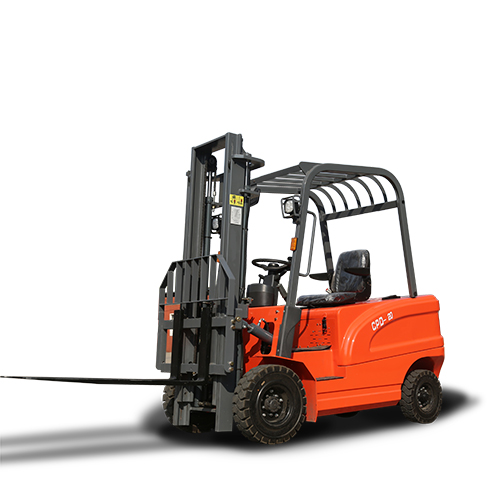

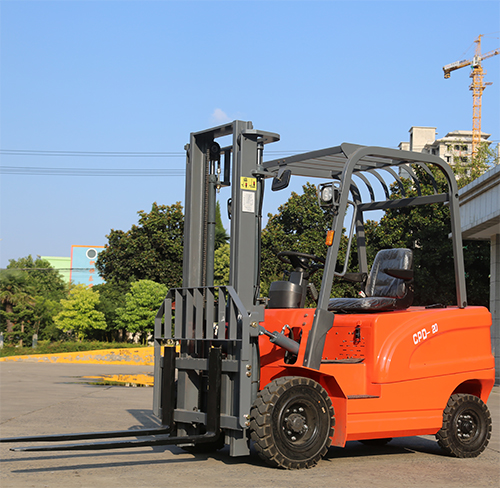

2 Ton Counter Balance Forklift CPD-20B
Electric Forklift CPD-20B
FEATURE | 1.1 | Origin | China | |||||
| 1.2 | Brand | / | ||||||
| 1.3 | Model | CPD-20B | ||||||
| 1.4 | Power Type | Lead-acid/Lithium | ||||||
| 1.5 | Operation Type | Seated | ||||||
| 1.6 | Rated Capacity | kg | 2000 | |||||
| 1.7 | Load Center | mm | 500 | |||||
| 1.8 | Front Overhang | mm | 400 | |||||
| 1.9 | Wheel Base | mm | 1640 | |||||
DIMENSION | 2.1 | Mast Tilting Angle Forward/Backward | αβ | 6 / 8 | ||||
| 2.2 | Ground Clearance | mm | 100 | |||||
| 2.3 | Lift Height | mm | 3000 | |||||
| 2.4 | Overall Dimension | mm | 2400×1200 | |||||
| 2.5 | Overall Height | mm | 2180 | |||||
| 2.6 | Fork Sizes | mm | 1070X120X35 | |||||
| 2.7 | Turning Radius | mm | 1930 | |||||
| 2.8 | Full Free Lifting Height | mm | 30 | |||||
| 2.9 | Overhead Guard Height | mm | 2180 | |||||
| 2.10 | AST(pallet 1000*1200) | mm | 1850 | |||||
WEIGHT | 3.1 | Service Weight(with battery) | kg | 3050 | ||||
| 3.2 | Weight Distribution (Laden)Front/Rear | kg | 4005/995 | |||||
| 3.3 | Weight Distribution (Unladen)Front/Rear | kg | 1230/1770 | |||||
| 3.4 | Wheel Type (Driving/Turning) | kg | Pneumatic tire | |||||
WHEEL | 4.1 | Turning Wheel Sizes | 5.00-8 | |||||
| 4.2 | Driving Wheel Sizes | 6.50-10 | ||||||
| 4.3 | Tread,Turning | mm | 1140 | |||||
| 4.4 | Tread,Driving | mm | 920 | |||||
| 4.5 | Driving Motor | kw(60min) | 4 | |||||
DRIVING ＆CONTROL | 5.1 | Lifting Motor | kw(15min) | 3 | ||||
| 5.2 | Battery Voltage/Capacity | mm | 60/230 | |||||
| 5.3 | Controller | V/ah | AC | |||||
| 5.4 | Workign Pressure | 20 | ||||||
| 5.5 | Travel Speed(laden/unladen) | mpa | 13.5/15 | |||||
| 5.6 | lifting Speed(laden/unladen) | km/h | 250/360 | |||||
PERFORMANCE | 6.1 | Lowering Speed(laden/unladen) | mm/s | 600/300 | ||||
| 6.2 | Max Climbing Ability | mm/s | 15 | |||||
| 6.3 | Service Brake | ° | Hydraulic | |||||
| 6.4 | Parking Brake | Mechanical | ||||||
| 6.5 | Driving Type | Electric | ||||||
| 6.6 | Steering System | Hydraulic | ||||||
OTHER | 7.1 | Noise Level | 68 | |||||
| 7.2 | Waterproof Grade | IPX4 |
· Multiple measures to ensure the safety of the driver
Explosion proof hydraulic system,
High stength Mast, passed the drop test of 1.5ton/1.6m
Emergency power-off switch
Anti-slope brake
.....
· High-efficency and performance
Regenerative braking saves more than 10% energy during traveling
Full AC system on control and pump extend service life largely.
Over discharge and charge protection function ensure the battery safety.
· Improved Operating Comfort
Ergonomically designed cockpit and joystick can reduce driving fatigue and improve driving safety
· Improved Driving’s view
Standard configuration of wide view mast, compact structure of mast and tube pully block
· Why choose us
We are manufacturer.
