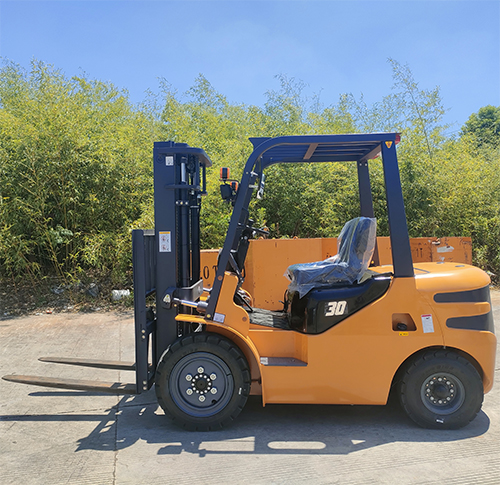

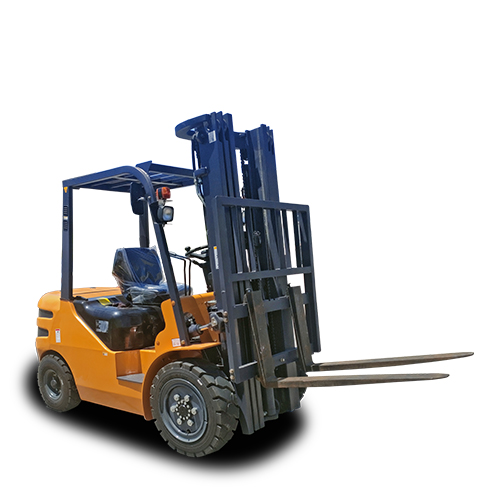

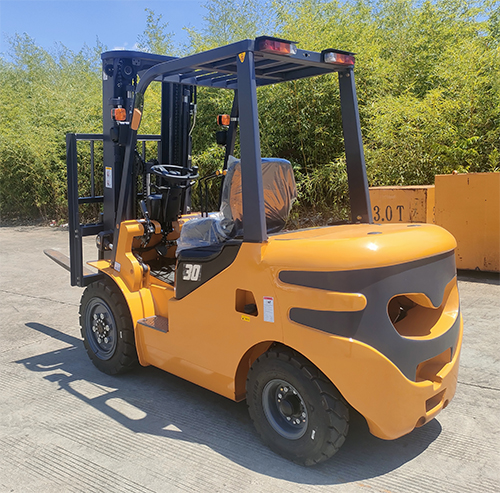

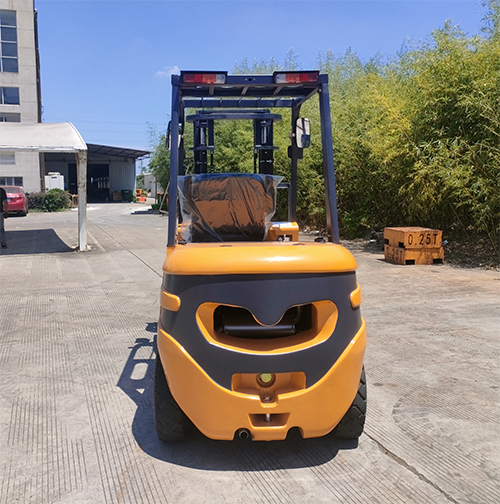

3-3.5 Ton Diesel Forklift

Generals	1	Model			UNIT	HH30Z	HH30	HH35Z	HH35
	2	Power type				Diesel/ Gasoline/LPG
	3	Rated capacity			kg	3000	3000	3500	3500
	4	Load center			mm	500	500	500	500
Dimensions	5	Lift height			mm	3000	3000	3000	3000
	6	Free lift height			mm	130	130	130	130
	7	Fork size(L*W*T)			mm	1070×125×45	1070×125×45	1070×125×45	1070×125×45
	8	Fork outside spread(Min./Max.)			mm	300/1200	300/1200	300/1200	300/1200
	9	Mast tilt range(F/R)			deg	6/12	6/12	6/12	6/12
	10	Front overhang			mm	490	490	490	490
	11	Overall dimensions	Length to face of fork	Without of fork	mm	2750	2750	2800	2800
	12			With fork	mm	3820	3820	3870	3870
	13			Wheel width	mm	1225	1225	1225	1225
	14		Mast lowered height		mm	2095	2095	2095	2095
	15		Mast extended height		mm	4180	4180	4180	4180
	16		Overhead guard height		mm	2130	2130	2130	2130
	17	Turning radius			mm	2460	2460	2510	2510
	18	Min. right angle aisle width			mm	2105	2105	2200	2200
Performance	19	Travel speed (unload/full load)			km/h	20/18.5	20/18.5	20/18.5	20/18.5
	20	Lift speed (unload/ full load)			mm/s	480	480	480	480
	21	Self weight			kg	4250	4250	4500	4500
	22	Max. gradeability			%	20	20	20	20
Wheel & Tires                         Drive units	23	Tires		Front		28×9-15-12PR	28×9-15-12PR	28×9-15-12PR	28×9-15-12PR
	24			Rear		6.50-10-10PR	6.50-10-10PR	6.50-10-10PR	6.50-10-10PR
	25	Tread		Front	mm	1000	1000	1000	1000
	26			Rear	mm	970	970	970	970
	27	Wheelbase			mm	1700	1700	1700	1700
	28	Min. ground clearance     （unload/ full load）		Mast	mm	152/132	152/132	152/132	152/132
	29			Frame	mm	158/138	158/138	158/138	158/138
	30	Battery			v/ah	12/90	12/90	12/90	12/90
	31	Engine		Model		4D27G31	4D27G31	4D27G31	4D27G31
	32			Rated output	kw/r.p.m	36.8/2500	36.8/2500	36.8/2500	36.8/2500
	33			Rated torque	n.m/r.p.m	156/1700-1900	156/1700-1900	156/1700-1900	156/1700-1900
	34			Displacement	cc	2670	2670	2670	2670
	35			No. of cylinder		4	4	4	4
	36			Borestroke	mm	90×105	90×105	90×105	90×105
	37	Transmissionn                                    双		Model		Hydraulic	Hydraulic	Hydraulic	Hydraulic
	38			Shift (FWD/RVS) 档位（前/后）		1/1	2/2	1/1	2/2
	39	Operating pressure			mpa	17.5	17.5	17.5	17.5

·  Multiple measures to ensure the safety of the driver

     Explosion proof hydraulic system,

     High stength Mast, passed the drop test of 1.5ton/1.6m

     Emergency power-off switch

     Anti-slope brake

     .....

·  High-efficency and performance

    Regenerative braking saves more than 10% energy during traveling

    Full AC system on control and pump extend service life largely.

    Over discharge and charge protection function ensure the battery safety.

·  Improved Operating Comfort

    Ergonomically designed cockpit and joystick can reduce driving fatigue and improve driving safety

·  Improved Driving’s view

    Standard configuration of wide view mast, compact structure of mast and  tube pully block

· Why choose us

    We are manufacturer.
