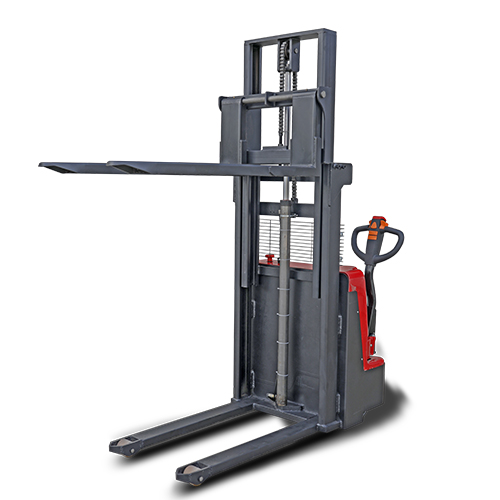

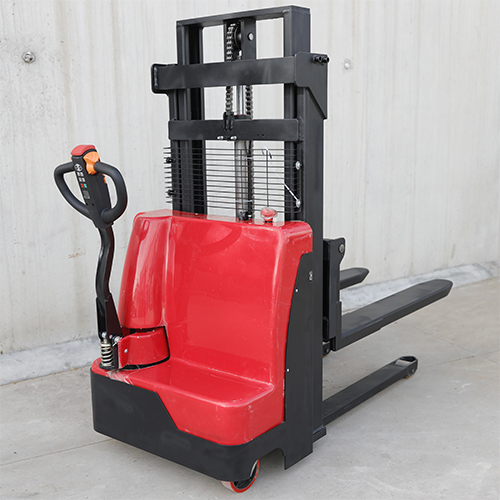

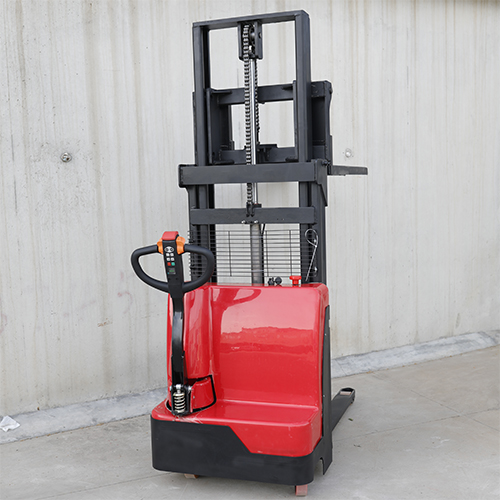

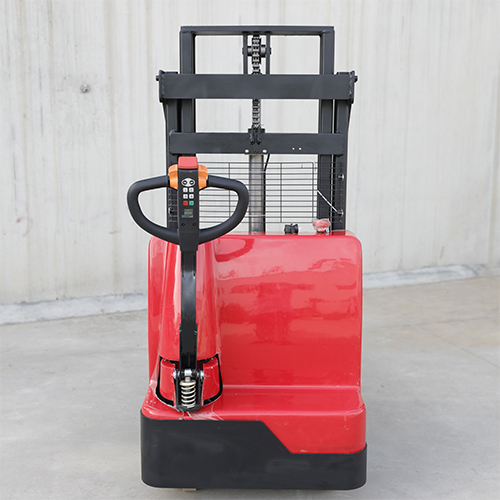

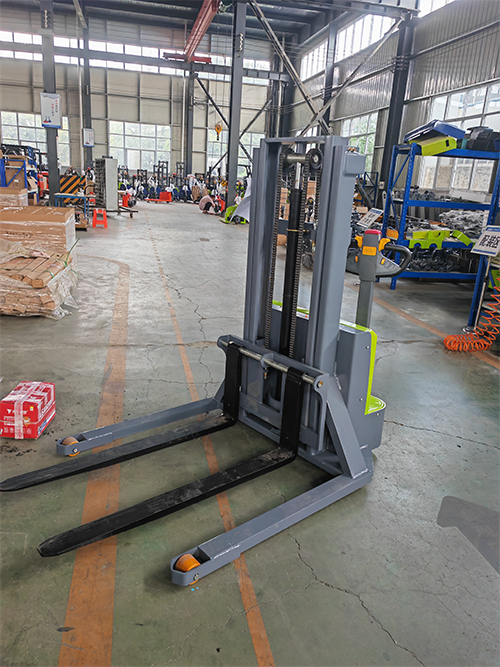

All Electric Pallet Stacker DGX-20

·  Adopting a permanent magnet brushless motor avoids the hassle of replacing carbon brushes and also avoids static electricity caused by carbon brushes

·  Bias operation, more flexible steering, and less operation space are required;

·  Lifting heigh 1.6m-3.5m;

·  Capacity is 2 tons;

·  Market tested hydraulic unit station;

·  equiped with VRLA battery;

·  Forward, backward, lifting, and lowering can be achieved through an integrated handle;

·  Equipped with a display screen, it can clearly indicate the battery usage status;

·  The continuous working time is about 4-8 hours (depending on different battery configurations), and the charging time is about 3-6 hours (for lithium or lead-acid batteries);

·   Equipped with an emergency reverse driving switch to ensure the safety of the driver;

·  The power consumption for all-day operation is 2 kWh.

Specification

Including lead acid battery

Dimension

·  Overall dimension:1760mm*850mm*1680mm(1980mm/2180MM)

·  Lifting Height: 1.6m-3.5m

·  Ground Clearance: 85mm (The top of fork to the ground)

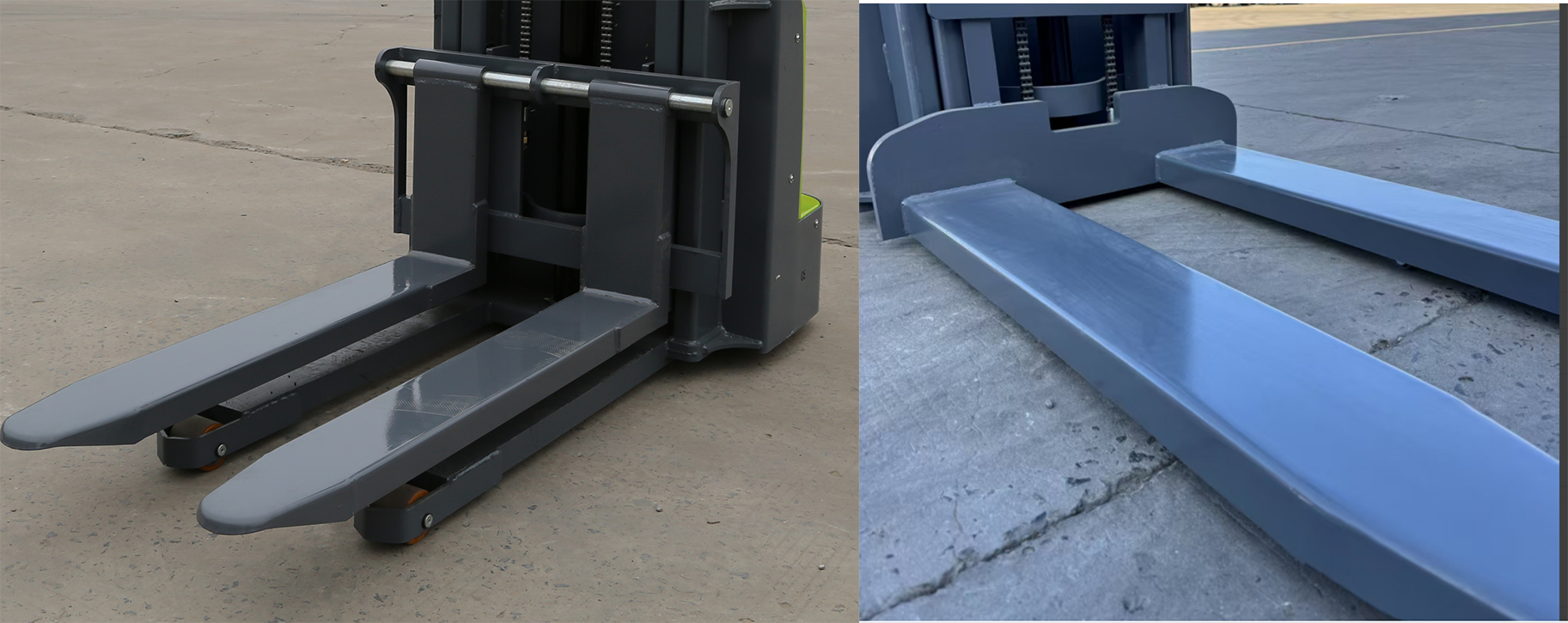

Fork

·  Fork Dimension: 1150mm*160mm*80mm

·  Fork Width: 550mm/685mm(Optional)

·  Fork material: Q345/Gr50/S345

·  Fork thickness: 4.5mm

·  Fork Type: Fixed and removable optional

Speed

·  Travelling Speed: 5km/h

·  Turtle Speed: 3.5km/h (Optional)

Battery

·  Standard equipped 48V/20Ah lead acid battery (VRLA); continous working for 4 hours;

·  48V/32Ah Lead acid battery optional; continous working for 5-6 hours;

·  48V/20Ah lithium battery optional; continous working for 4 hours;

·  48V/30Ah(40Ah) lithium battery optional; continous working for 6-8 hours;

Charging

·  The charger is suitable for single-phase 110V-120V voltage (220V-230V optional)

·  Fully charge the pallet truck before use;

·  Even if not in use, it is necessary to charge the battery every month to prevent battery damage;

·  The LED light on the charger displays the charging status;

• Green: Fully Charged



• Red Flash: Charging

·  Charging Time: 6 hours(Lead Acid battery), 3 hours(Lithium Battery)

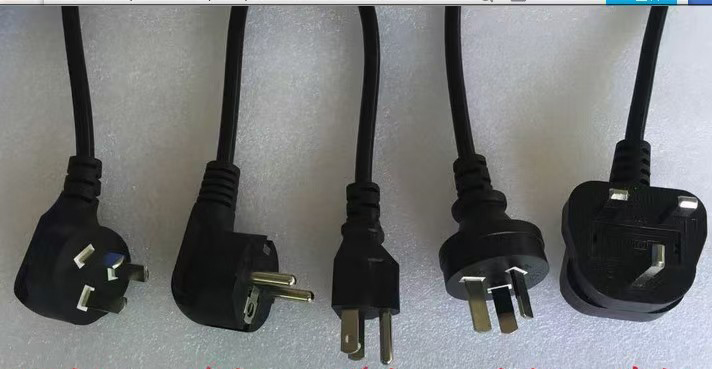

·  Please choose different plugs according to your country's situation.

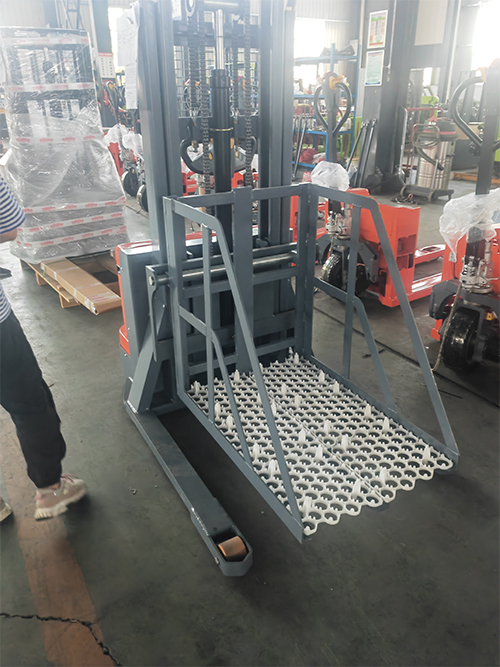

Customized

·  We can also manufacture extended or widened forks according to customer requirements,

·  Alternatively, according to customer requirements, we can manufacture kindsof vehicles.
