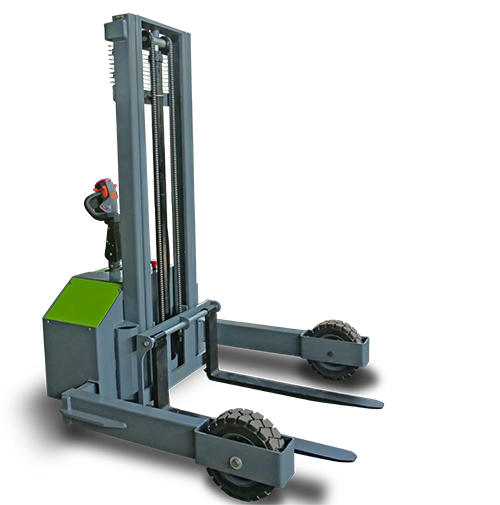

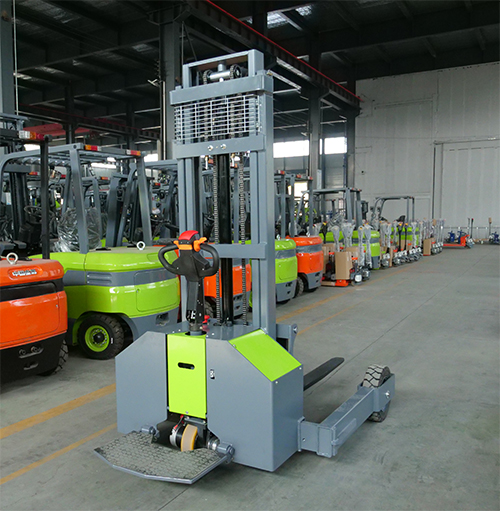

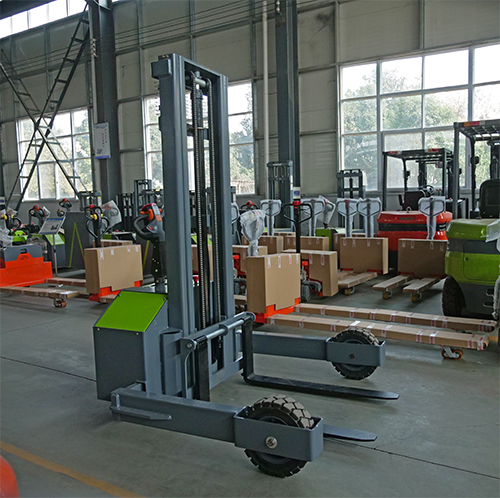

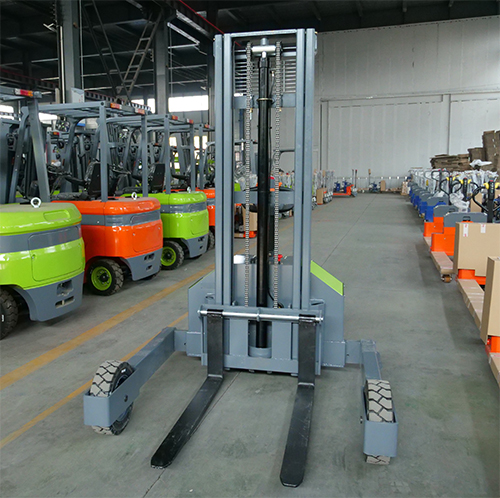

All Electric Pallet Stacker DGXC-15

·  Unique structure, suitable for various working conditions;

·  Standing operation improves storage efficiency;

·  Lifting heigh 1.6m-3.5m;

·  Capacity is 1.5 tons;

·  Market tested hydraulic unit station;

·  Equiped with VRLA battery;

·  Forward, backward, lifting, and lowering can be achieved through an integrated handle;

·  Equipped with a display screen, it can clearly indicate the battery usage status;

·  The continuous working time is about 4-8 hours (depending on different battery configurations), and the charging time is about 3-6 hours (for lithium or lead-acid batteries);

·   Equipped with an emergency reverse driving switch to ensure the safety of the driver;

·  The power consumption for all-day operation is 2 kWh.

Specification

Including lead acid battery

Dimension

·  Overall dimension:1950mm*1750mm*1680mm(1980mm/2180MM)

·  Lifting Height: 1.6m-3.5m

·  Ground Clearance: 10mm (The top of fork to the ground)

Fork

·  Fork Dimension: 1150mm*80mm*50mm

·  Fork Width: 1100mm-1800(Optional)

·  Fork material: Q345/Gr50/S345

·  Fork thickness: 50mm

·  Fork Type: Forged fork

Speed

·  Travelling Speed: 5km/h

·  Turtle Speed: 3.5km/h (Optional)

Battery

·  Standard equipped 24V/80Ah lead acid battery (VRLA); continous working for 4-6 hours;

·  24V/100Ah Lead acid battery optional; continous working for 5-6 hours;

·  24V/60Ah lithium battery optional; continous working for 4 hours;

·  24V/80Ah(100Ah) lithium battery optional; continous working for 6-8 hours;

Charging

·  The charger is suitable for single-phase 110V-120V voltage (220V-230V optional)

·  Fully charge the pallet truck before use;

·  Even if not in use, it is necessary to charge the battery every month to prevent battery damage;

·  The LED light on the charger displays the charging status;

• Green: Fully Charged



• Red Flash: Charging

·  Charging Time: 6 hours(Lead Acid battery), 3 hours(Lithium Battery)

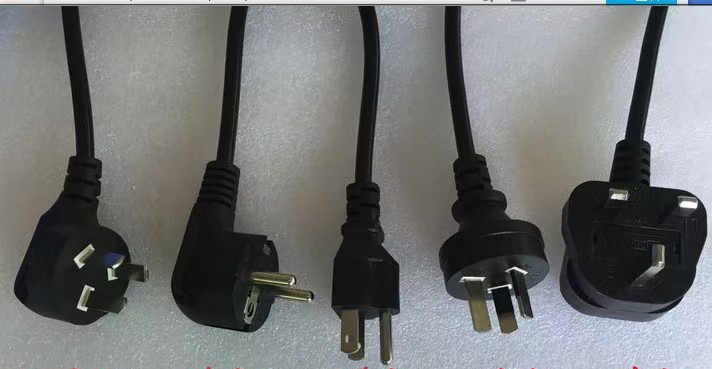

·  Please choose different plugs according to your country's situation.
