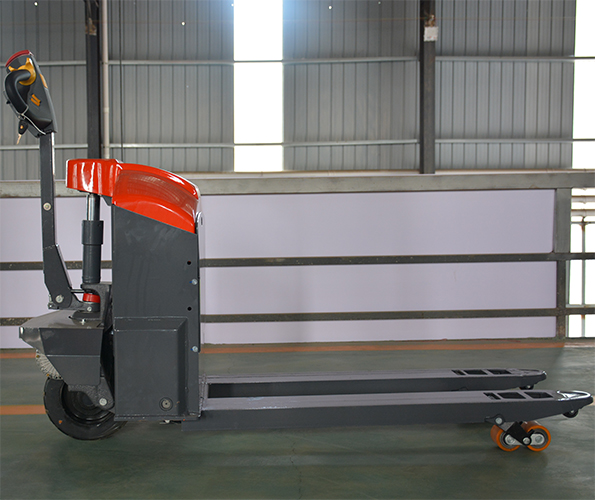

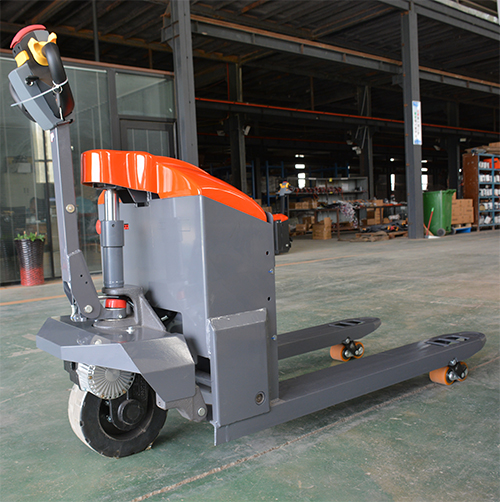

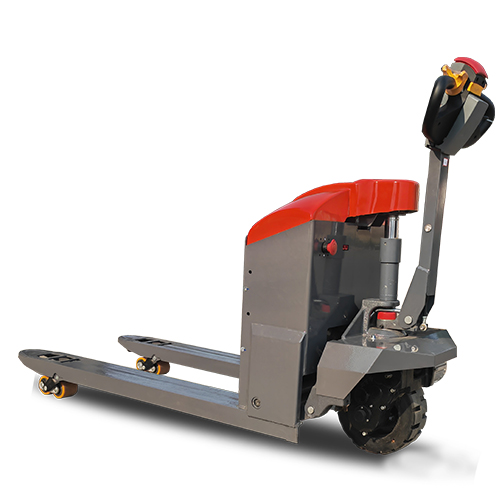

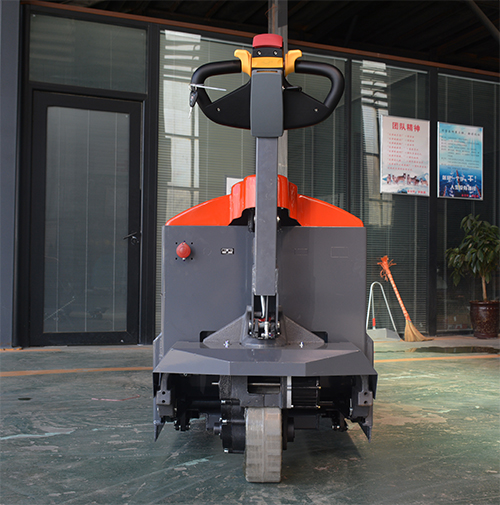

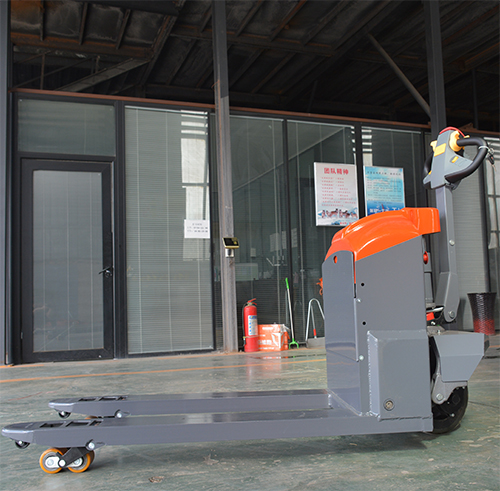

All Electric Pallet Truck EPTY-30Q(Big Wheel)

·  Equipped with solid rubber tyre (driving wheel), leads to silence driving and the ability to overcome obstacles;

·  Adopting a permanent magnet brushless motor avoids the hassle of replacing carbon brushes and also avoids static electricity caused by carbon brushes

·  Capacity is 2-3 tons;

·  Adopting a walking style operation, with a small turning radius and flexible turning;

·  Climbing ability (Loaden/unloaden) 15% / 20%;

·  Pull out battery box can quickly replace batteries;

·  Forward, backward, lifting, and lowering can be achieved through an integrated handle;

·  Equipped with a display screen, it can clearly indicate the battery usage status;

·  The continuous working time is about 4-8 hours (depending on different battery configurations), and the charging time is about 3-6 hours (for lithium or lead-acid batteries);

·   Equipped with an emergency reverse driving switch to ensure the safety of the driver

·  The power consumption for all-weather operation is 2 kWh.

Specification

Including lead acid battery

Dimension

·  Overall dimension:1670mm*750mm*1430mm

·  Lifting Height: 200mm

·  Ground Clearance: 85mm (The top of fork to the ground)

Fork Size

·  Fork Dimension: 1150mm*160mm*80mm

·  Fork Width: 550mm/685mm(Optional)

·  Fork material: Q345/Gr50/S345

·  Fork thickness: 3.75mm

Speed

·  Travelling Speed: 5km/h

·  Turtle Speed: 3.5km/h (Optional)

Battery

·  Standard equipped 48V/20Ah lead acid battery (VRLA); continous working for 4 hours;

·  48V/32Ah Lead acid battery optional; continous working for 5-6 hours;

·  48V/20Ah lithium battery optional; continous working for 4 hours;

·  48V/30Ah(40Ah) lithium battery optional; continous working for 6-8 hours;

Charging

·  The charger is suitable for single-phase 110V-120V voltage (220V-230V optional)

·  Fully charge the pallet truck before use;

·  Even if not in use, it is necessary to charge the battery every month to prevent battery damage;

·  The LED light on the charger displays the charging status;

• Green: Fully Charged



• Red Flash: Charging

·  Charging Time: 6 hours(Lead Acid battery), 3 hours(Lithium Battery)

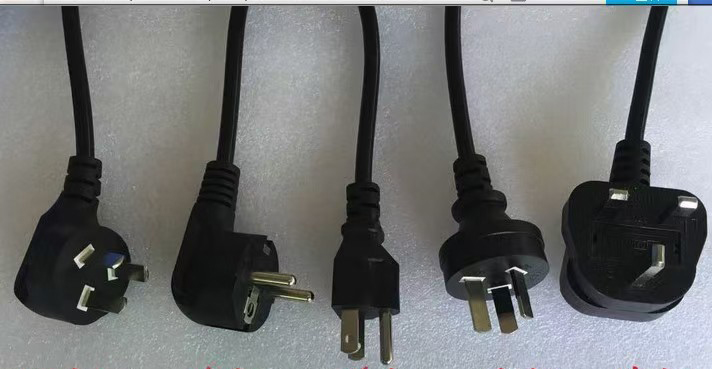

·  Please choose different plugs according to your country's situation.

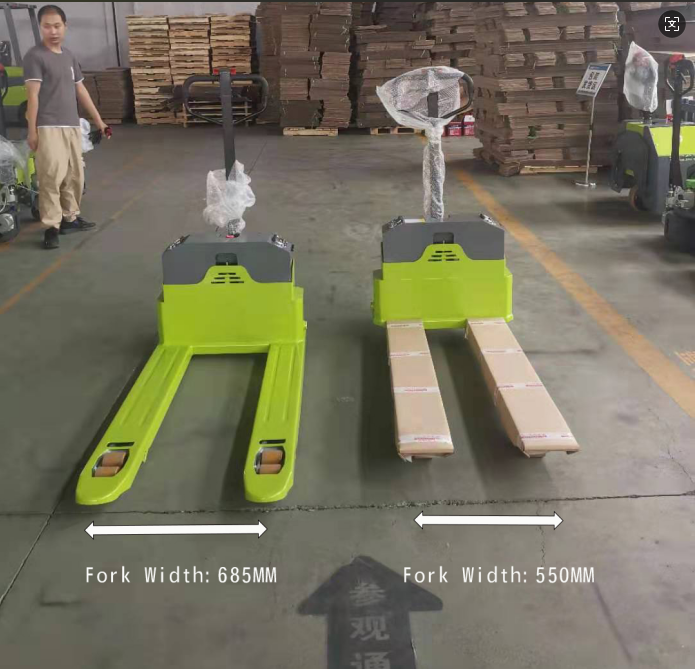

Fork Width

·  You can choose between 685mm fork width or 550mm fork width according to customer needs;

·  Note: 685mm fork width is suitable for 1000 * 1000 pallets or 1000 * 1200 pallets;

             550mm fork width is suitable for 600 * 800 pallets or 800 * 800 pallets;

Customized

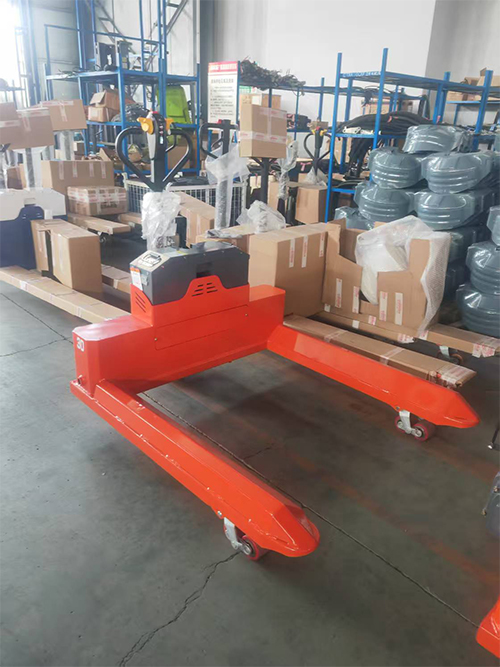

·  We can also manufacture extended or widened forks according to customer requirements,

·  Alternatively, according to customer requirements, we can manufacture paper roll or oil drum transport vehicles.
