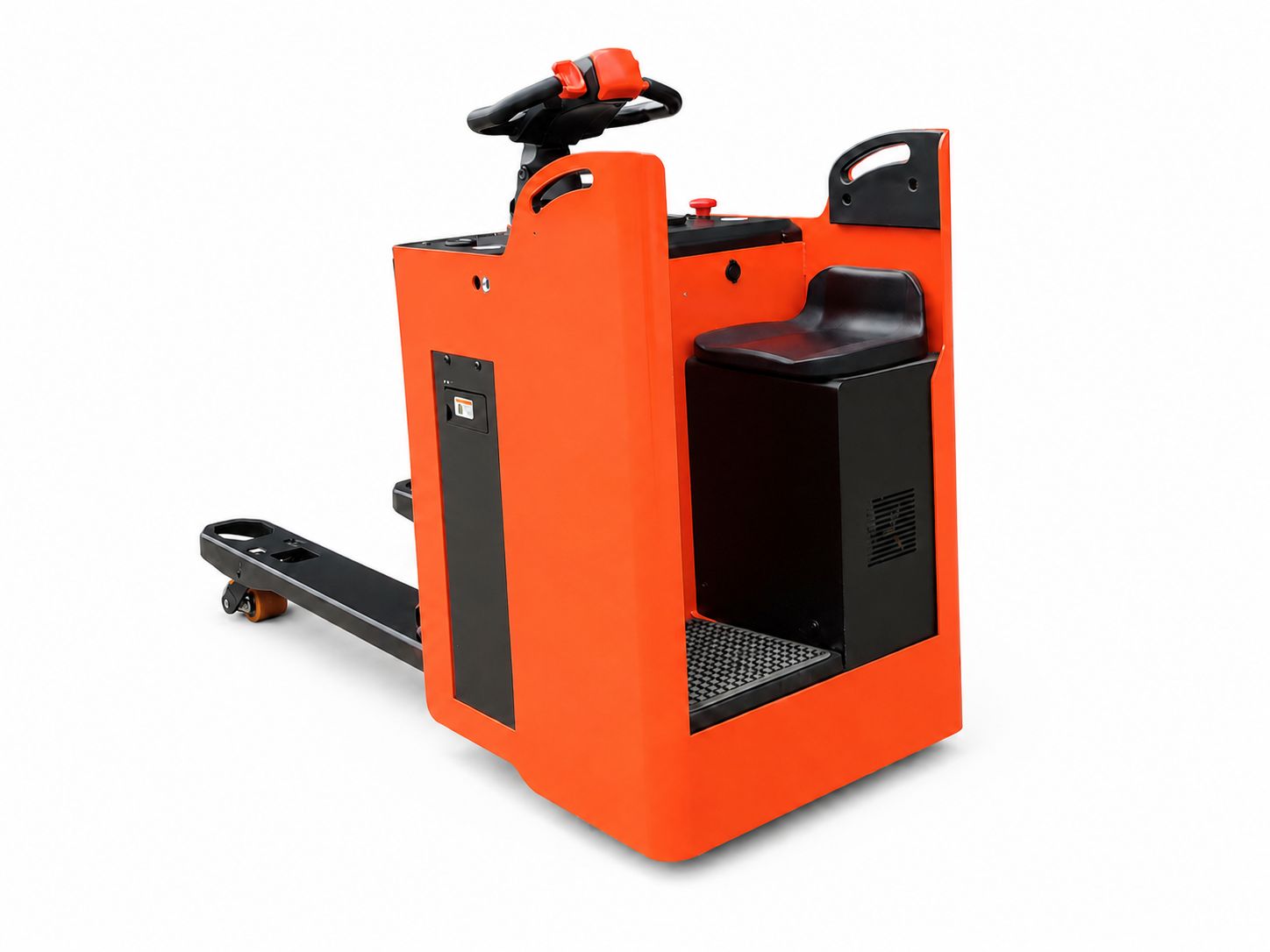

2 Ton Side-Seated Electric Pallet Truck
This 2 ton side-seated electric pallet truck is designed for efficient warehouse, factory and logistics material handling. With a compact ride-on structure, electronic steering, electromagnetic braking and optional lithium / lead-acid battery, it provides easier operation, safer control and flexible movement in narrow working areas.
Compact Ride-on Design For Efficient Handling
This 2 ton side-seated electric pallet truck is designed for warehouse transfer, factory logistics and medium-distance pallet handling. The compact ride-on design helps reduce operator fatigue and improve daily handling efficiency.
- Rated load capacity: 2000kg
- Side-seated / ride-on operation
- Electronic steering for easier control
- 48V electric power system

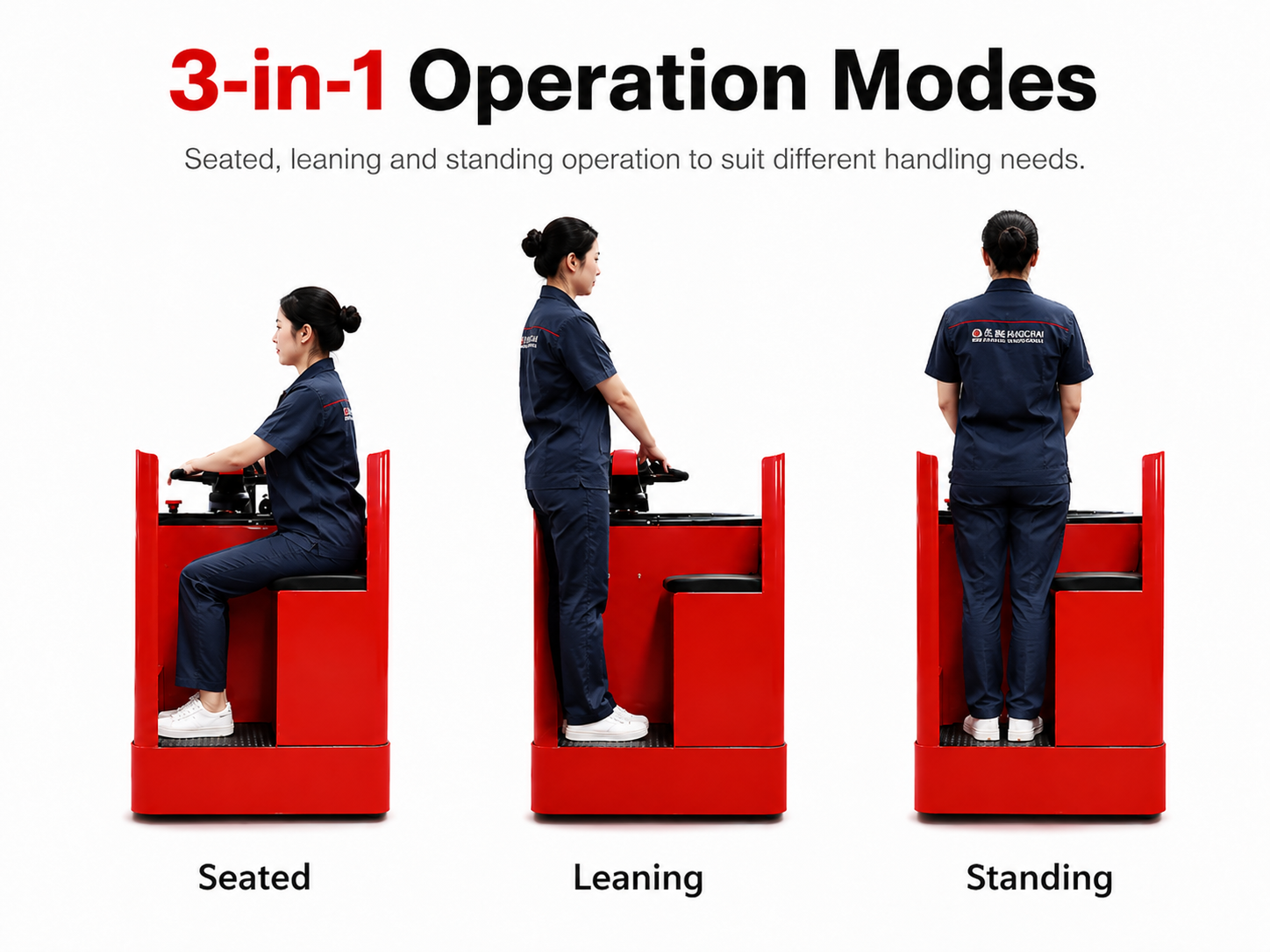

Seated, Leaning And Standing Operation
The truck supports multiple operating postures to meet different handling habits and working conditions. Operators can choose seated, leaning or standing operation for better comfort during daily work.
- Comfortable seated operation for long working time
- Leaning operation for flexible control
- Standing operation for quick movement
- Suitable for warehouse and factory transfer

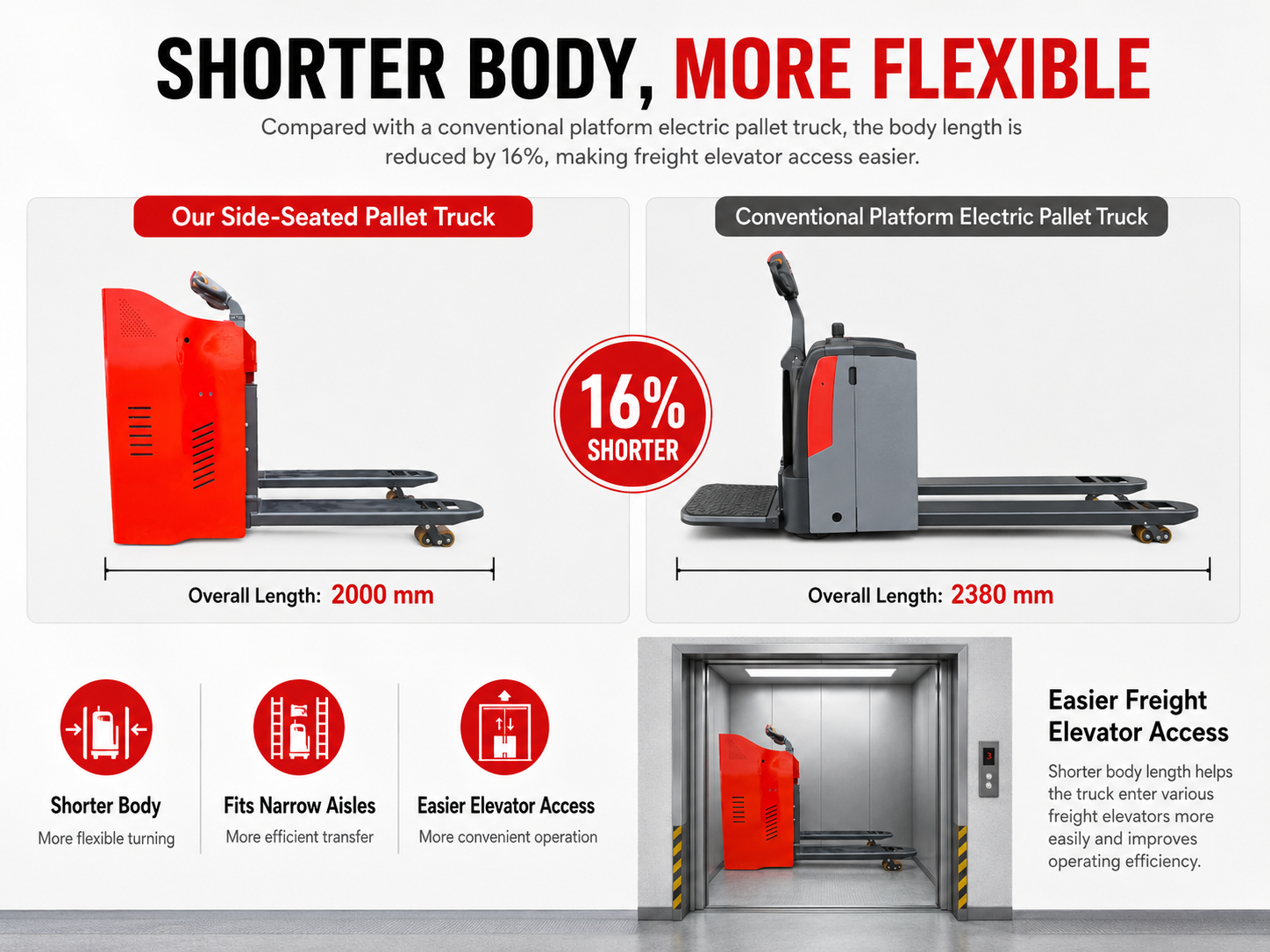

More Flexible In Narrow Working Areas
Compared with conventional platform electric pallet trucks, the compact body design improves maneuverability and makes it easier to enter freight elevators, narrow aisles and workshop passages.
- Overall length: 2000mm, including tow hook
- Turning radius: 2000mm
- Better access to freight elevators
- Improved flexibility for narrow spaces

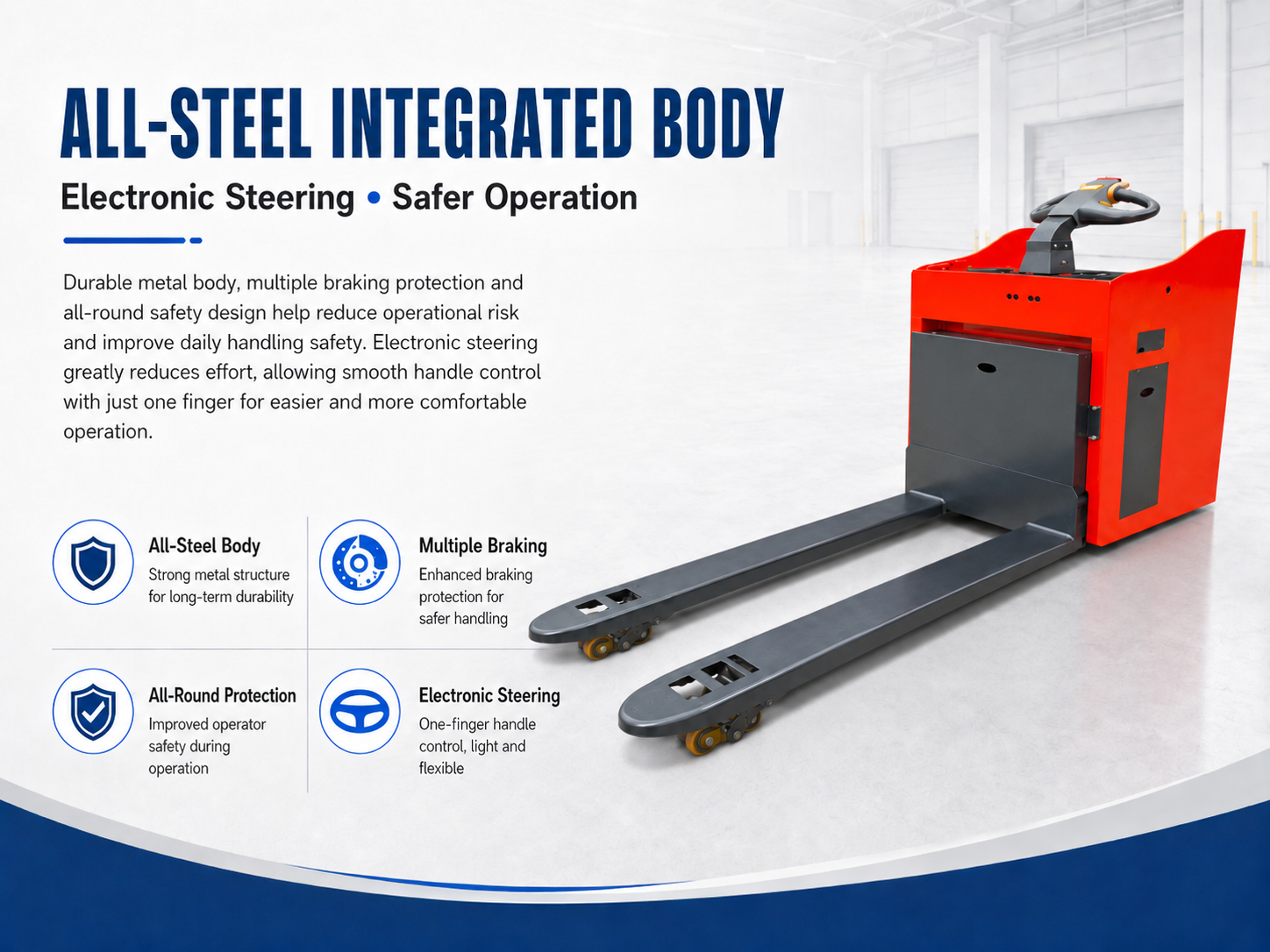

Stronger Structure, Safer Operation
The integrated metal body provides stronger protection for the truck structure. Combined with electronic steering and multiple braking protection, it helps improve daily operation safety.
- All-steel integrated body structure
- Electronic steering reduces operating effort
- Multiple protection for safer handling
- Durable design for warehouse and factory use

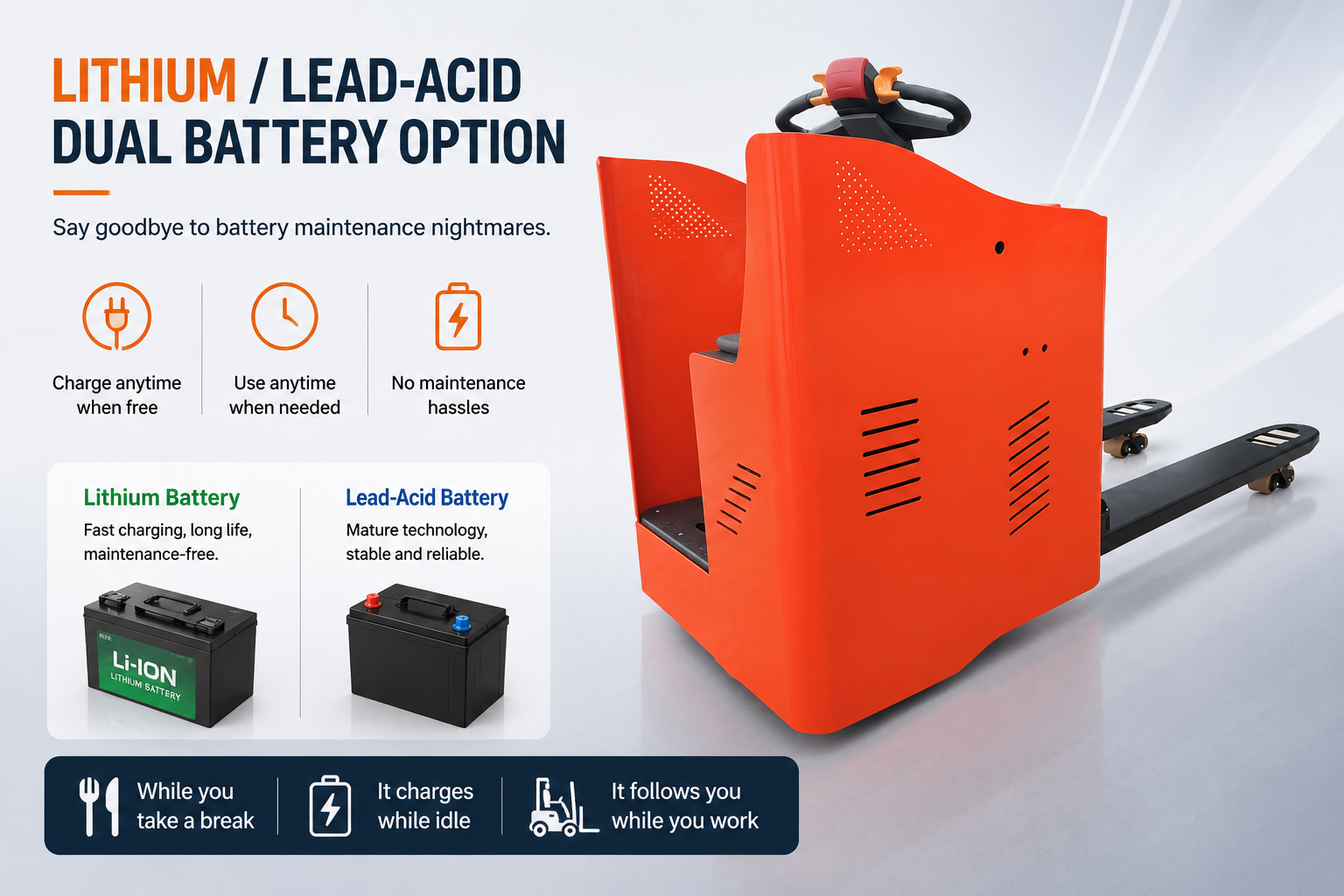

Lithium / Lead-Acid Battery Optional
Lithium battery and lead-acid battery options are available for different working needs. Charge when you have time and use when you need it, helping reduce battery maintenance concerns.
- 48V electric power system
- Lithium / lead-acid battery optional
- Flexible charging for daily use
- Stable power support for material handling

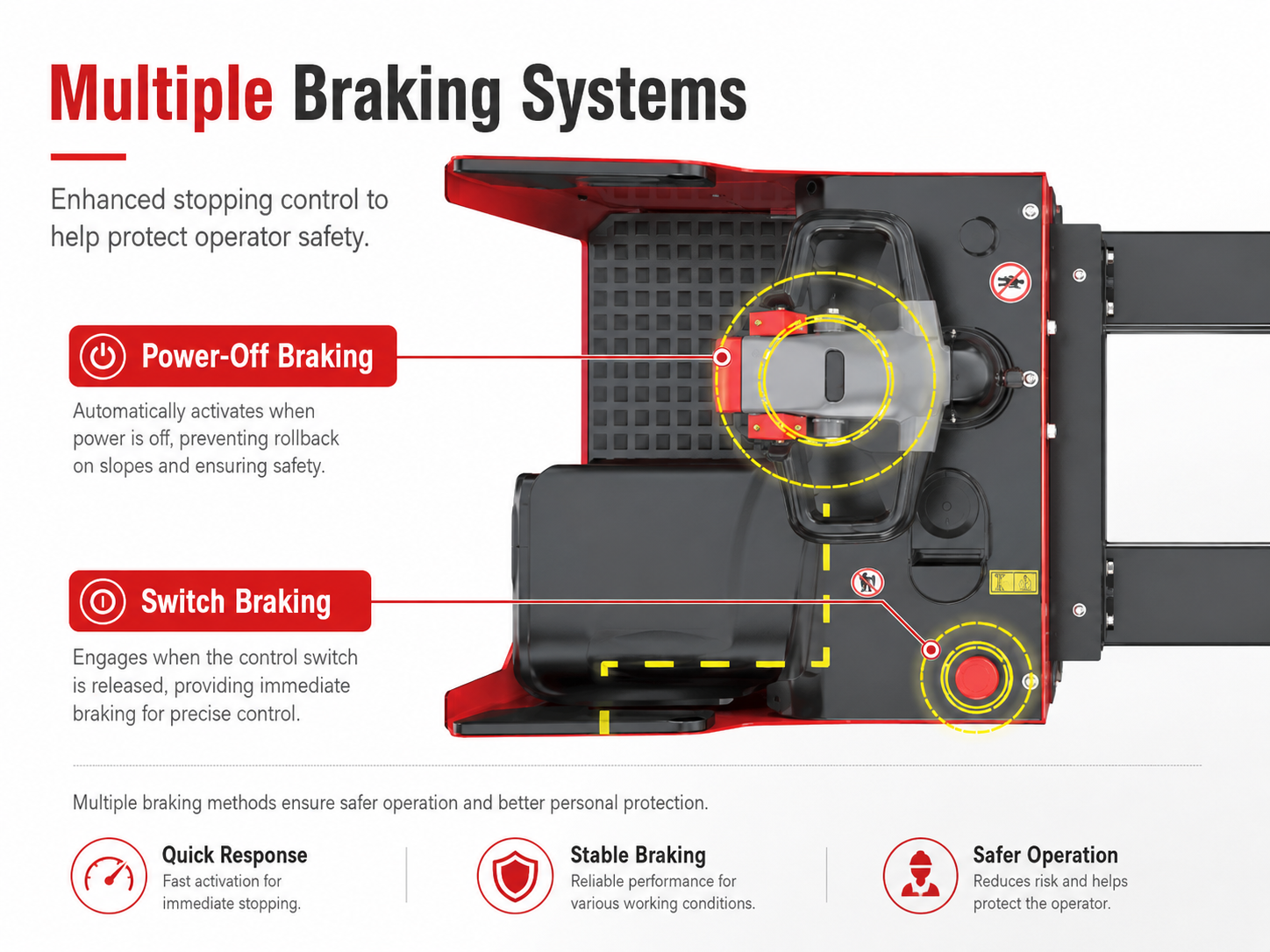

Enhanced Braking Protection For Safer Handling
Multiple braking methods help improve operator safety during daily use. Power-off braking and switch braking provide reliable stopping control in different working conditions.
- Electromagnetic braking system
- Power-off braking protection
- Switch braking for quick response
- Safer operation for warehouse handling
2 Ton Side-Seated Electric Pallet Truck
Main technical data for ride-on side-seated electric pallet truck. Specifications may vary slightly depending on configuration.
| Item | Specification |
|---|---|
| Basic Information | |
| Product Type | Side-Seated Electric Pallet Truck |
| Power Type | Electric |
| Operation Type | Ride-on / Side-Seated |
| Rated Capacity | 2000kg |
| Load Center | 600mm |
| Dimensions | |
| Load Length | 1200mm |
| Wheelbase | 1600mm |
| Service Weight | 470kg |
| Overall Length | 2000mm, including tow hook |
| Overall Width | 730mm |
| Fork Size | 60×180×1180mm |
| Overall Fork Width | 550 / 685mm |
| Lowered Fork Height | 85mm |
| Lift Height | 120mm |
| Ground Clearance | 25mm |
| Turning Radius | 2000mm |
| Wheels | |
| Wheel Material | Polyurethane |
| Drive Wheel Size | Φ250×80mm |
| Load Wheel Size | 4×Φ80×70mm |
| Balance Wheel Size | 1×Φ130×50mm |
| Performance | |
| Travel Speed, Laden / Unladen | 5.5 / 6 km/h |
| Lift Speed, Laden / Unladen | 0.045 / 0.064 m/s |
| Lowering Speed, Laden / Unladen | 0.05 / 0.027 m/s |
| Max. Gradeability, Laden / Unladen | 8% / 16% |
| Brake Type | Electromagnetic Brake |
| Motor & Control | |
| Drive Motor | 1.6kW |
| Lift Motor | 1.0kW |
| Battery Voltage | 48V |
| Battery Type | Lead-acid / Lithium Optional |
| Drive Unit Type | AC |
| Steering Type | Electronic Steering |
| Noise Level | 74 dB(A) |
