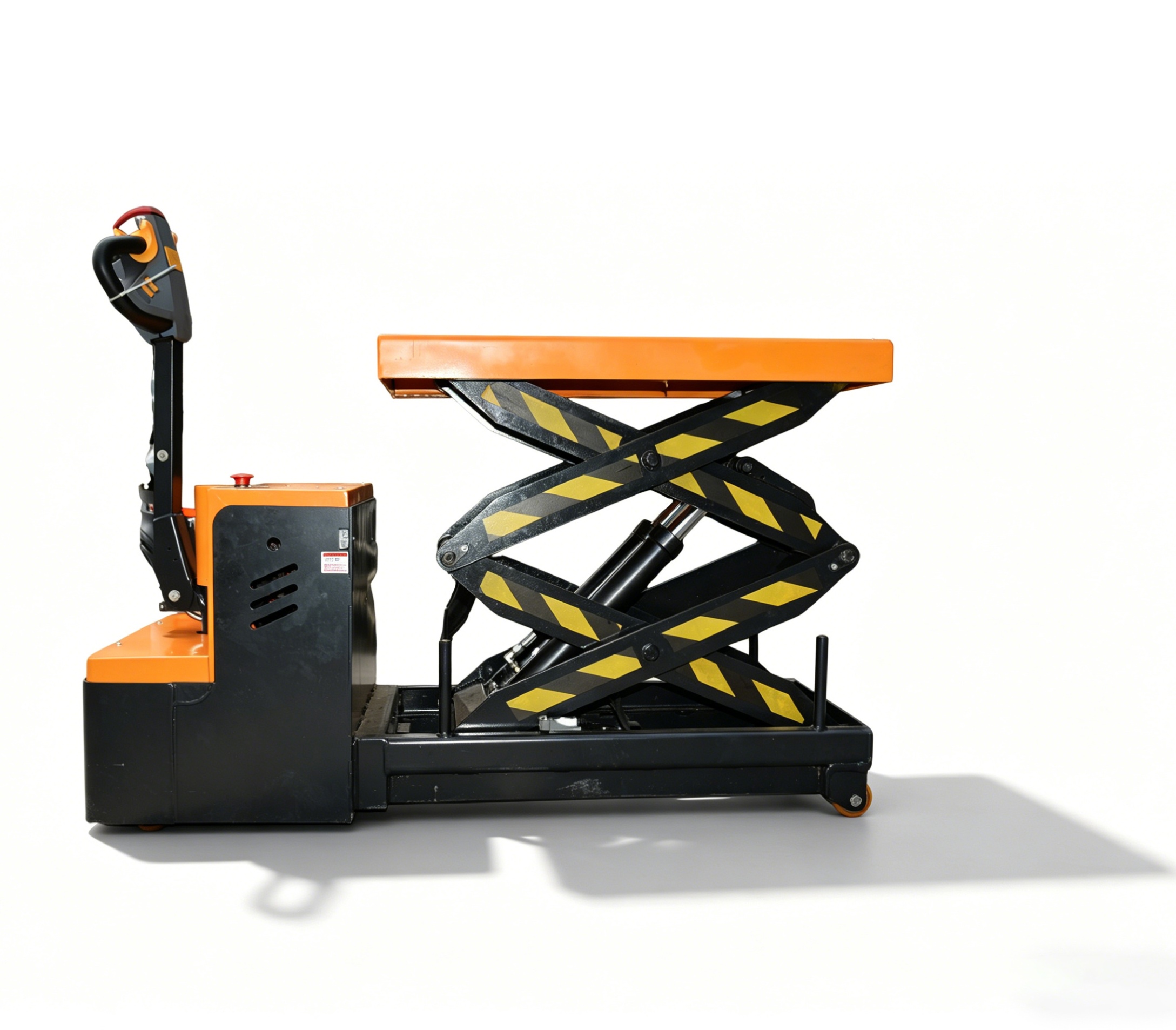

All Electric Lifting platform LPT-15
The LPT-15 all electric lifting platform truck combines material transport and platform lifting in one machine. With 1500kg rated load capacity, 1610mm max lift height and a 995×600mm work platform, it is ideal for workshops, warehouses, assembly lines and workstation lifting operations.
One Truck, Two Functions. Higher Efficiency.
This all electric lifting platform truck combines material handling and lifting functions in one machine. With full electric operation and a 1500kg rated load capacity, it helps improve efficiency in warehouses, workshops and production lines.
- Rated load capacity: 1500kg
- Max. lift height: 1610mm
- Platform size: 995×600mm
- 48V electric power system
Meet Daily Material Handling Needs
Designed for different industrial working environments, this lift platform truck can be used for workshop material transfer, warehouse handling, equipment support and workstation operations.
- Ideal for workshops
- Ideal for warehousing
- Ideal for equipment support
- Ideal for workstation operations
Lifting And Transport In One Machine
The electric lifting platform helps operators raise heavy materials to a suitable working height, reducing manual handling and improving work efficiency during loading, unloading and production feeding.
- Max. lift height: 1610mm
- Minimum platform height: 460mm
- Lift speed: 45 / 50 mm/s, laden / unladen
- Lowering speed: 65 / 60 mm/s, laden / unladen

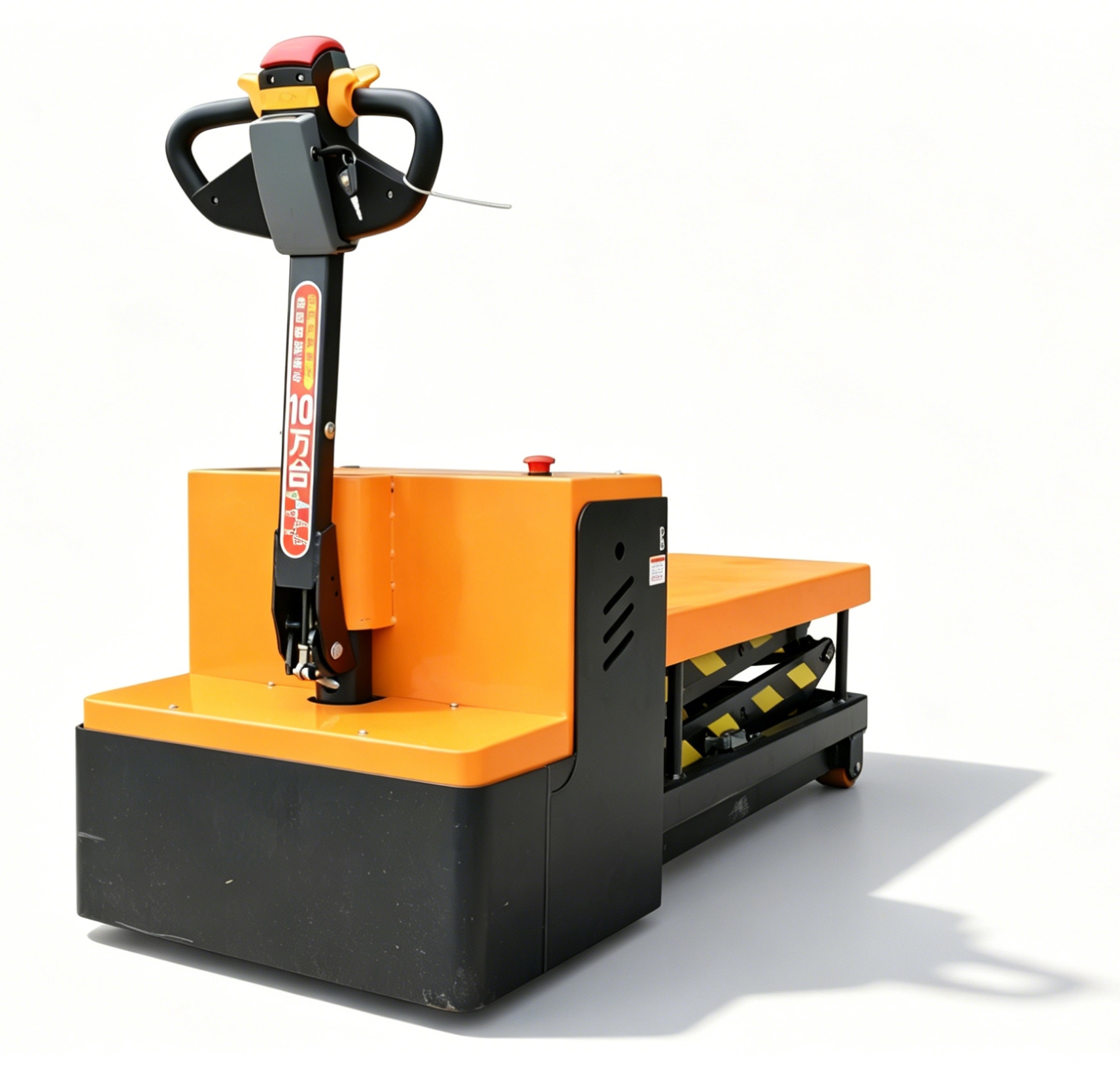

Clear Handle Control For Smooth Movement
The ergonomic control handle supports easy forward, backward and lifting operation. The emergency stop button provides quick response in emergency situations, helping improve daily operation safety.
- Full electric operation
- Ergonomic handle design
- Emergency stop button
- Minimum turning radius: 1800mm

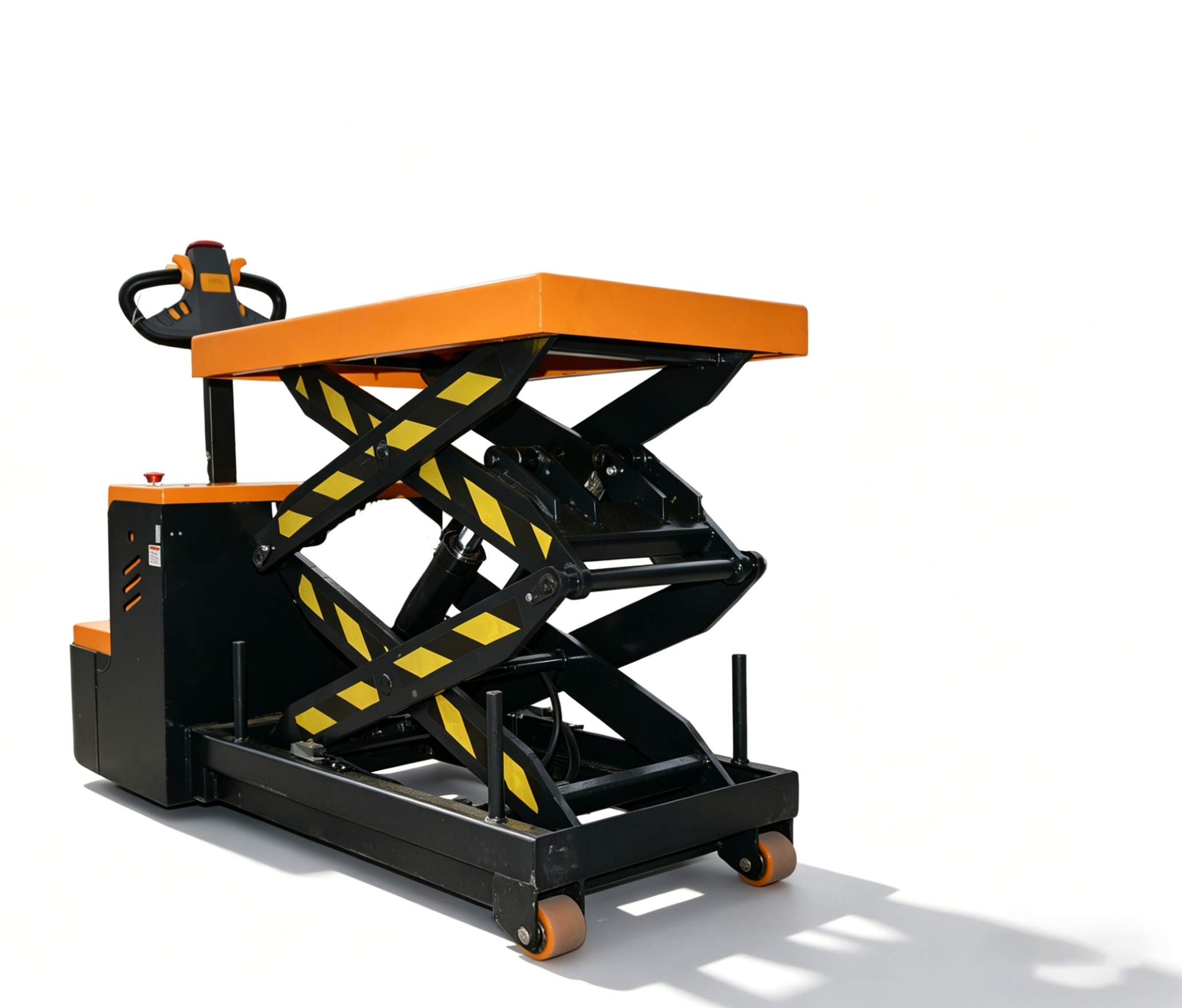

Reinforced Lifting Structure For Reliable Support
The reinforced scissor lift structure provides stable lifting and lowering performance. The 995×600mm platform is suitable for heavy goods support, material positioning and workstation lifting applications.
- Platform size: 995×600mm
- Polyurethane wheels
- Drive wheel size: Φ160×55mm
- Front wheel size: 80×70mm

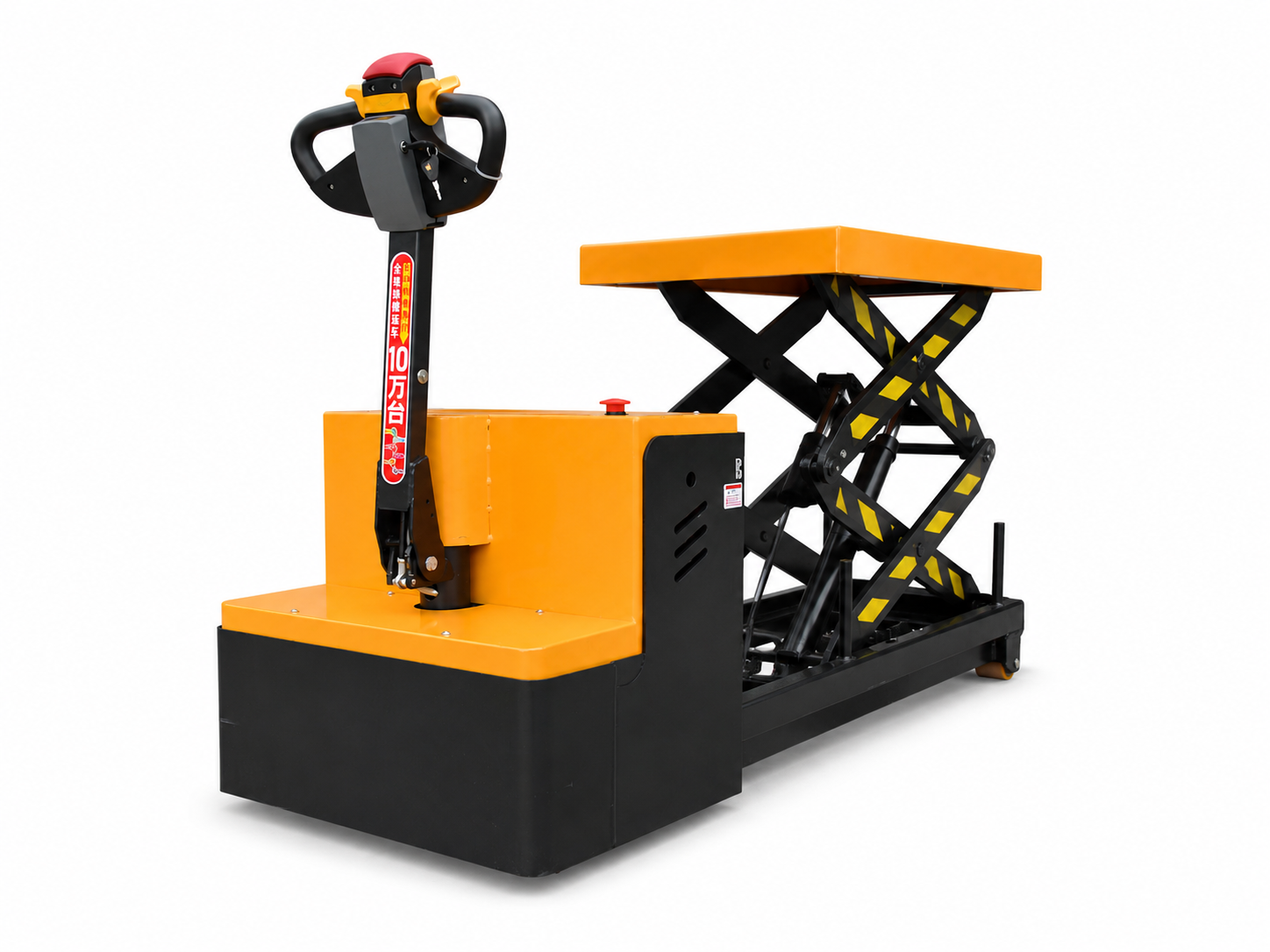

All Electric Lifting Platform LPT-15
Main technical data for all electric hydraulic scissor lift platform truck. Specifications may vary slightly depending on configuration.
| Item | Specification |
|---|---|
| Basic Information | |
| Product Type | All Electric Lifting Platform Truck |
| Operation Type | Full Electric |
| Rated Load | 1500kg |
| Load Center | 850mm |
| Wheelbase | 1340mm |
| Service Weight, Without Battery | 160kg |
| Platform & Dimensions | |
| Max. Platform Lift Height | 1610mm |
| Min. Platform Height | 460mm |
| Platform Width | 600mm |
| Platform Length | 995mm |
| Ground Clearance | 35mm |
| Turning Radius | 1800mm |
| Overall Length | 1750mm |
| Overall Width | 700mm |
| Overall Height | 660 / 1220mm, with handle |
| Performance | |
| Travel Speed, Laden / Unladen | 4 / 4.5 km/h |
| Lift Speed, Laden / Unladen | 45 / 50 mm/s |
| Lowering Speed, Laden / Unladen | 65 / 60 mm/s |
| Max. Gradeability | 20% |
| Motor & Battery | |
| Drive Motor Power | 48V / 1.8kW |
| Lift Motor Power | 48V / 0.8kW |
| Battery Options | Lead-acid 48V 20Ah / 32Ah; Lithium 30Ah / 60Ah |
| Controller Model | JWH-JGK001 |
