Pallet Stacker

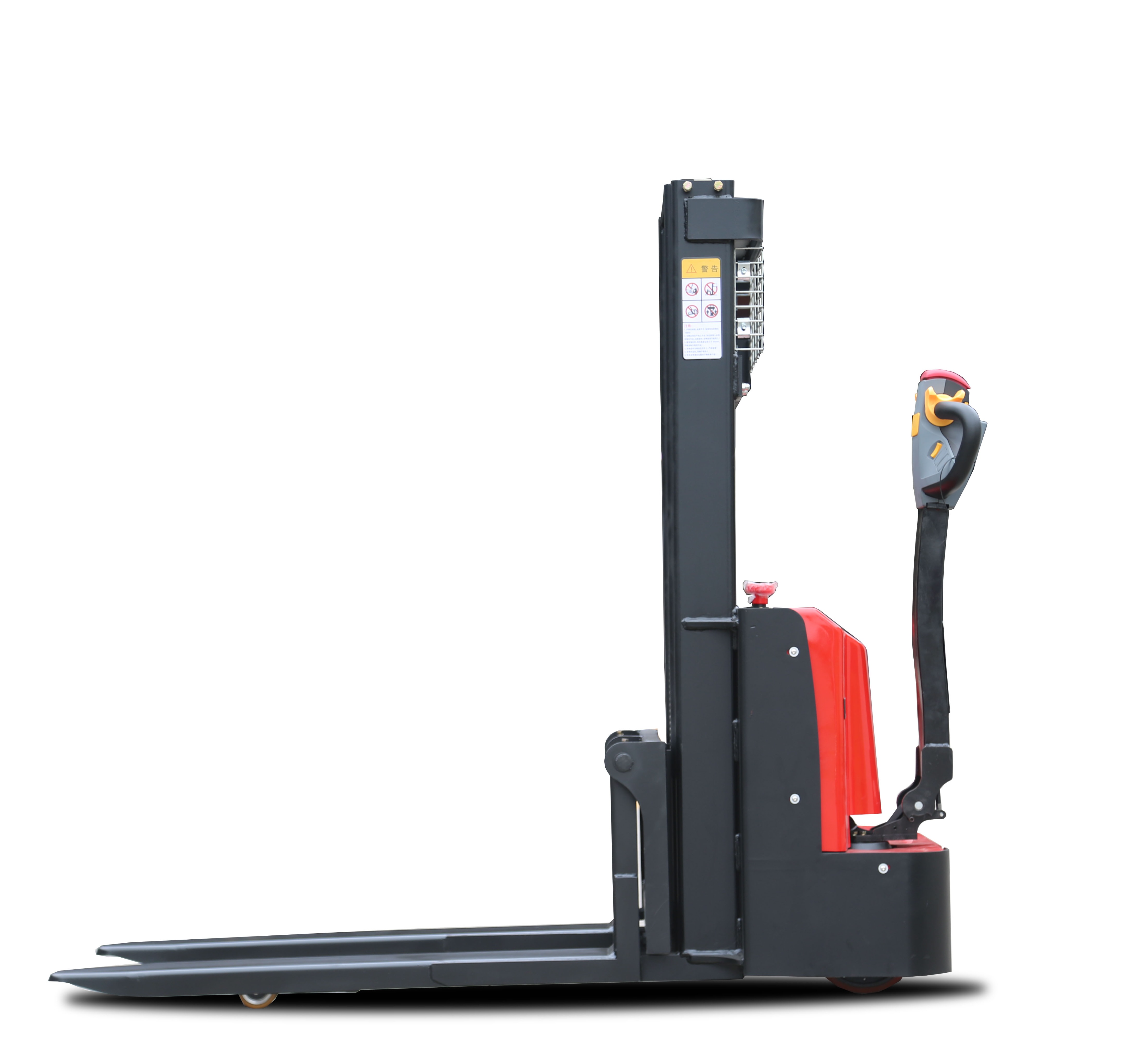

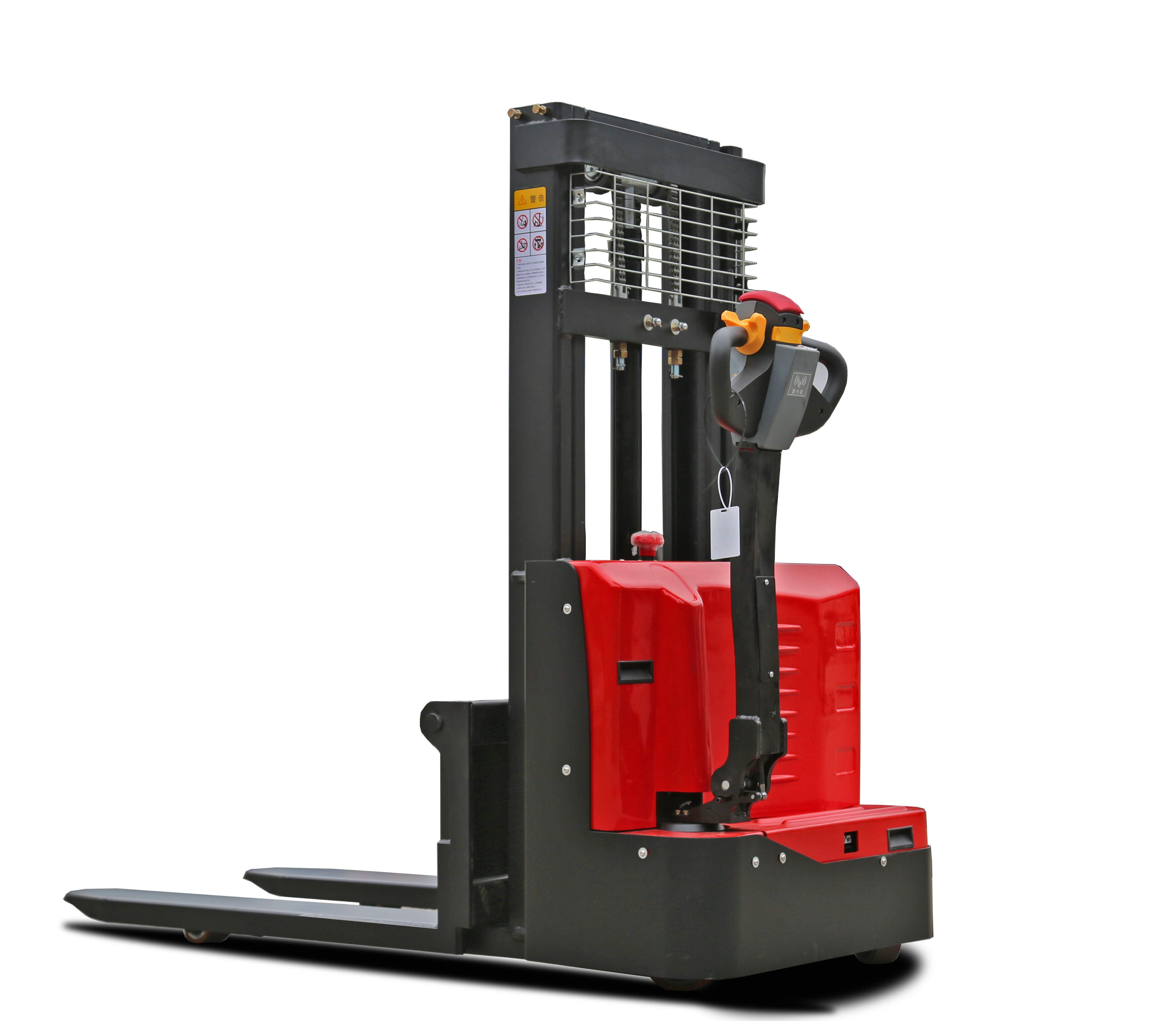

Pallet Stacker DGX-15
pallet stacker
Hydraulic Design
We only use top-brand international hydraulic components, market tested, to prevent goods from falling too quickly.
Bias Control
The handle is located to the side, meaning the operator can operate with a minimal turning radius.
Proportional Lifting
Variable speed control for lifting and lowering reduces mechanical shock and vibration, thus preventing damage to goods.
Lowering Buffering
All these stackers are equipped with a buffer lowering function, meaning that the lifting speed automatically decreases when the goods are approximately 10 cm off the ground, effectively protecting goods and pallets.
Easy to operate, the integrated handle combines lifting, lowering, forward and backward movement into one function.
- Battery Indicator
- Lifting/Lowering
- Forward/Backward
- Horn
- Emergency Reverse Switch
- Charging Alarm
- Fault Code Display
Robust and Durable:
Key components such as the mast and body are made of high-strength materials, meeting international and CE standards.
Stronger Mast:
The mast uses C+H steel with high-quality steel of 8mm or thicker.
Stronger Chains:
Utilizing a double-chain design, and consistently using plate chains (instead of roller chains), the double chains can bear a load exceeding 9 tons, far exceeding the international requirement of load capacity * 5 (1.5 * 5 = 7.5 tons).
Stronger truck Body:
Using high-quality steel of 6mm or thicker, our vehicles are heavier than most products on the market. This demonstrates our commitment to our customers and has earned us excellent customer feedback.
Electric Pallet Stacker Forklift Specification | ||||
FEATURE | 1.1 | Origin | | China |
1.2 | Brand | | HAGLIFT | |
1.3 | Model | | DGX-15 | |
1.4 | Power Type | | Lead Battery/Lithium | |
1.5 | Operation Type | | Walking | |
1.6 | Rated Capacity | kg | 1500 | |
1.7 | Load Center | mm | 500 | |
1.8 | Lifting Height | mm | 2000/2500/3000/3500 | |
DIMENSION | 2.1 | Overall Dimension(L/W/H) | mm | 1730×800×1680/1980/2180 |
2.2 | Fork Sizes | mm | 1150×160×55 | |
2.3 | Fork Width Min./Max. | mm | 550/685 | |
2.4 | Min. Ground Clearance | mm | 85 | |
2.5 | Turning Radius | mm | 1500 | |
2.6 | Min.Right Angle Channel Width | mm | 1560 | |
WEIGHT | 3.1 | Self-weight(with battery) | kg | 560/590/620/650 |
3.2 | Battery Weight | kg | 55 | |
WHEEL | 4.1 | Wheel Type (driving/turning) | | Solid PU |
4.2 | Driving Wheel Sizes | mm | 210X70 | |
4.3 | Loading Wheel Sizes | mm | 80X70 | |
DRIVING ＆ CONTROL | 5.1 | Driving Motor | kw(60min) | 1.5 |
5.2 | Lifting Motor | kw(60min) | 2.2 | |
5.3 | Battery Dimension | mm | 159×188×104 | |
5.4 | Battery Voltage/Capacity | V/ah | 24/80 | |
5.5 | Controller | | DC | |
PERFORMANCE | 6.1 | Travel speed(laden/unladen) | km/h | 3.5/4 |
6.2 | Lifting speed(laden/unladen) | mm/s | 4 | |
6.5 | Max Climbing Ability | % | 5 | |
6.6 | Braking | | electromagnetic induction | |
OTHER | 7.1 | Driving Type | | Electric |
7.2 | Steering System | | Manual | |
7.3 | Noise Level | | 40 | |
7.4 | Waterproof Grade | | IP68 | |
