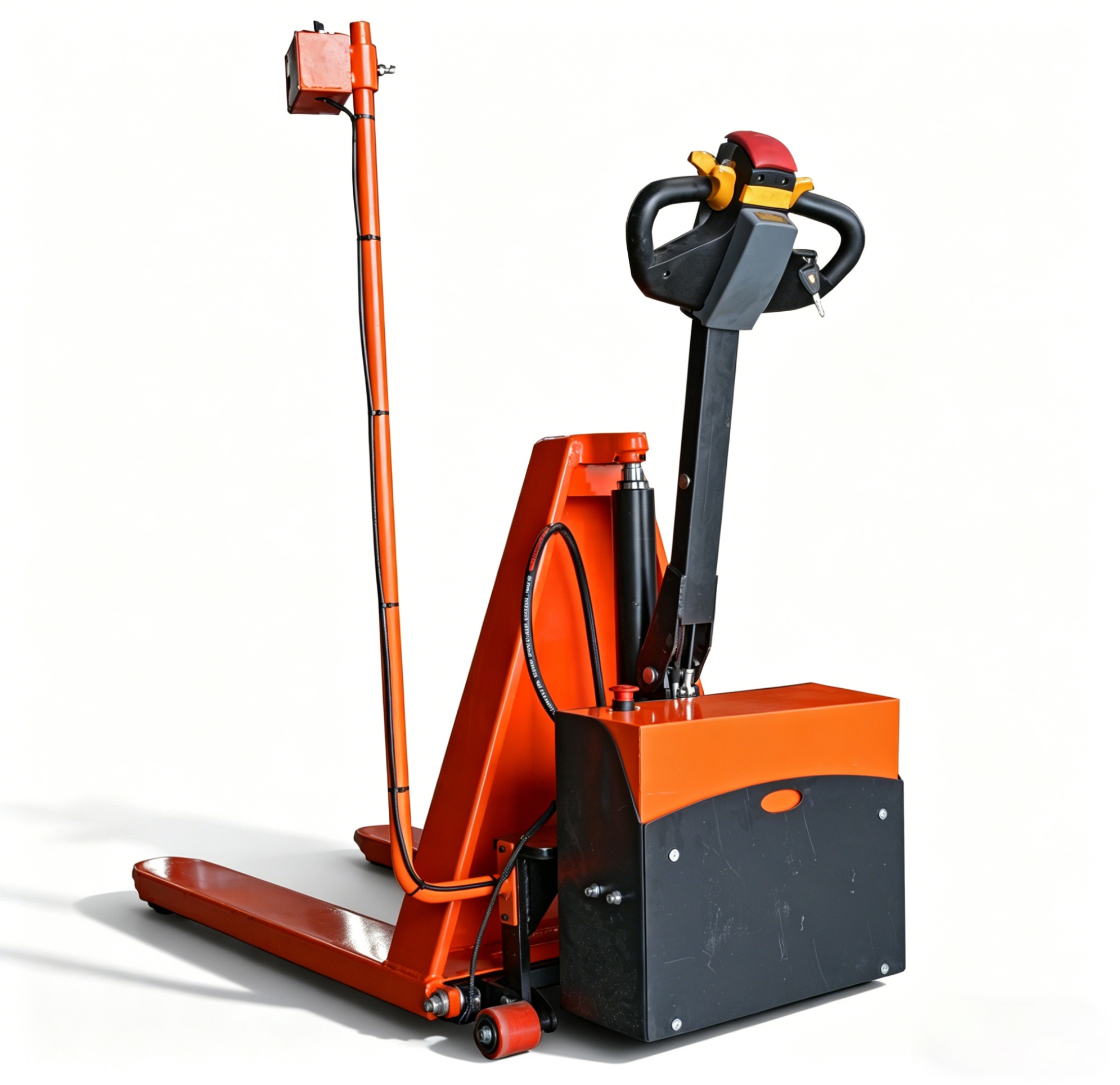

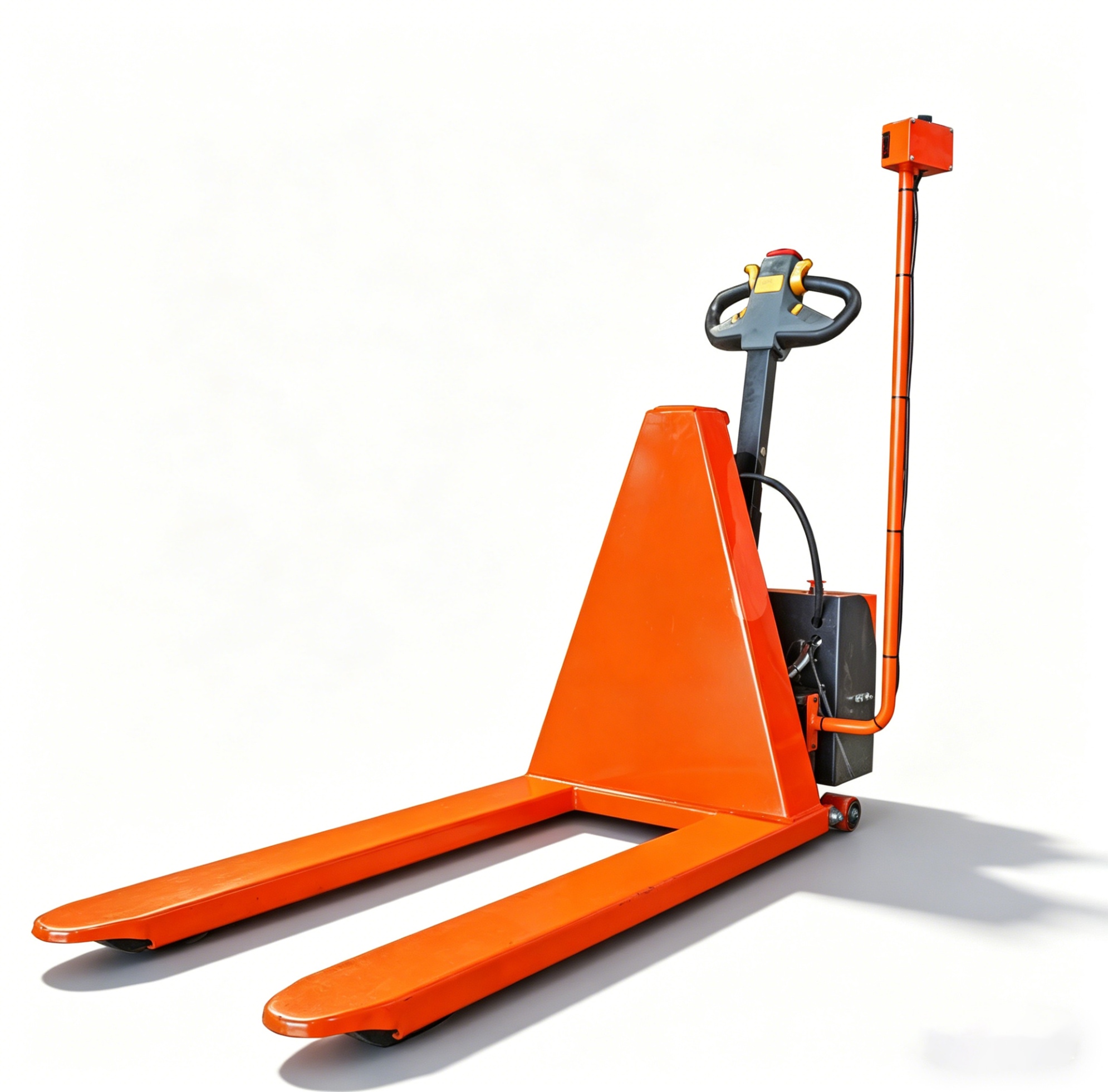

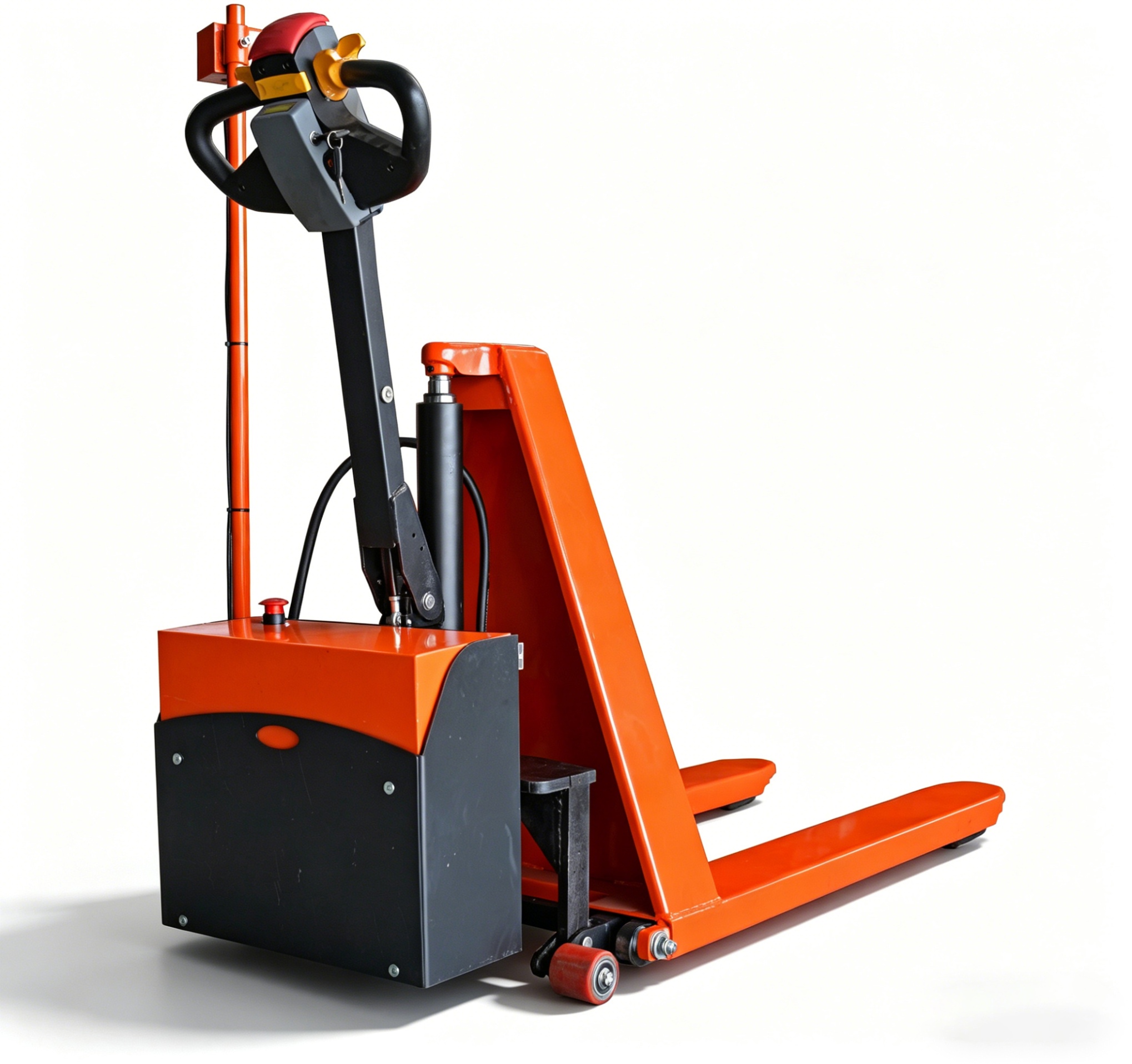

Scissor pallet truck SPT-15
The SPT-15 full electric scissor pallet truck combines powered travel and powered lifting in one compact machine. With 1500kg rated load capacity, 800mm max lift height and a stable scissor lift structure, it is ideal for pallet handling, workstation feeding, assembly line loading and warehouse material transfer.
Full Electric High Lift Pallet Truck
The SPT-15 full electric scissor pallet truck combines powered travel and powered lifting in one compact machine. It is designed for pallet handling, workstation feeding, assembly line loading and warehouse material transfer.
- Rated load capacity: 1500kg
- Full electric drive and lift
- Max. lift height: 800mm
- Compact body for narrow aisles and workstations

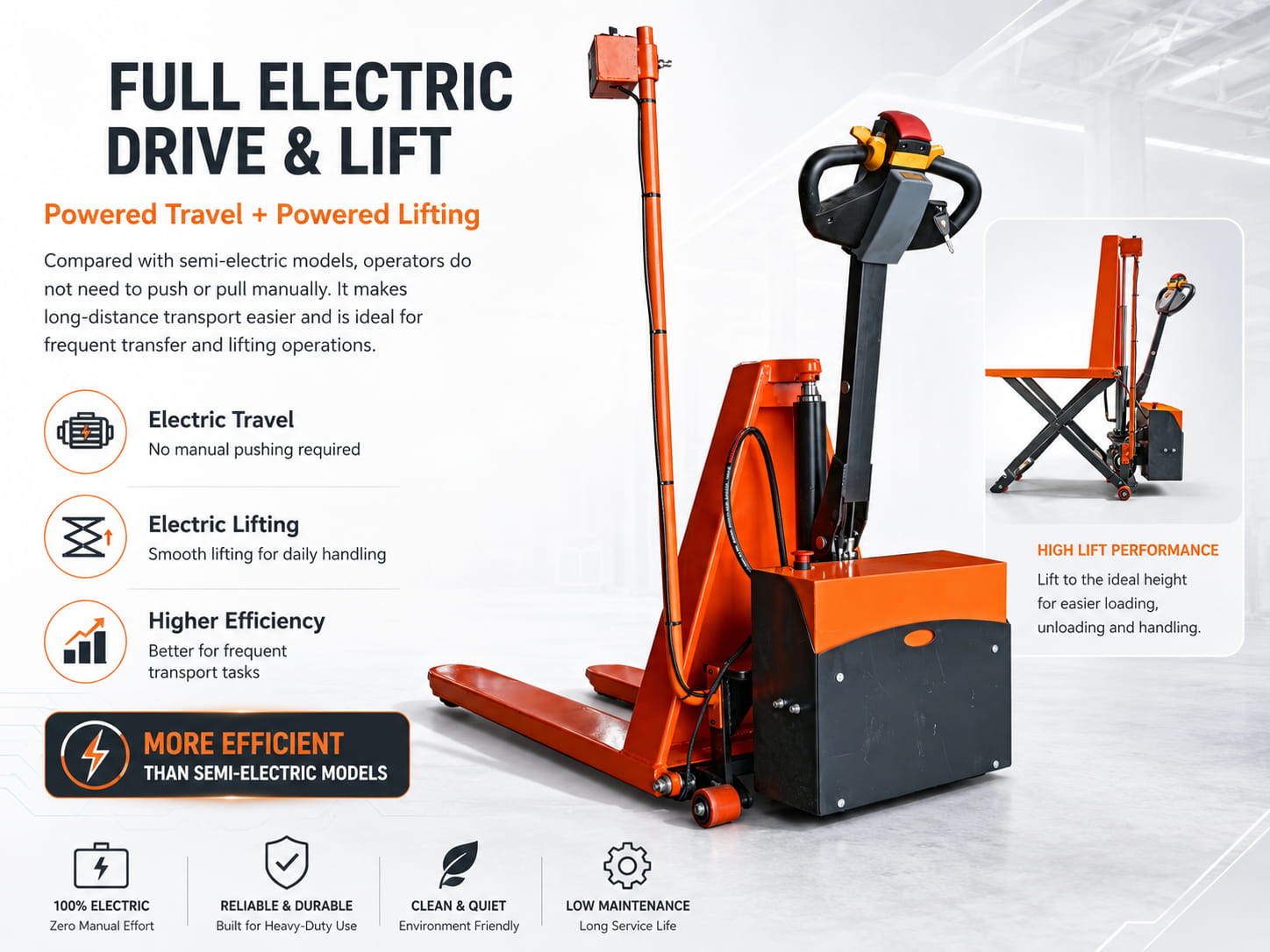

Powered Travel + Powered Lifting
Compared with semi-electric models, the full electric design reduces manual pushing and pulling. Operators can move and lift goods more easily, making it ideal for frequent transfer and lifting operations.
- Electric travel for easier movement
- Electric lifting for reduced manual labor
- Better choice for frequent handling tasks
- Suitable for warehouse and workshop use
Built For Medium And Heavy Material Handling
The SPT-15 is designed with a 1500kg rated load capacity, suitable for handling palletized goods, turnover boxes, parts, components and packing materials in daily industrial applications.
- Rated capacity: 1500kg
- Suitable for palletized goods
- Ideal for parts and component transfer
- Stable lifting for workshop and warehouse use

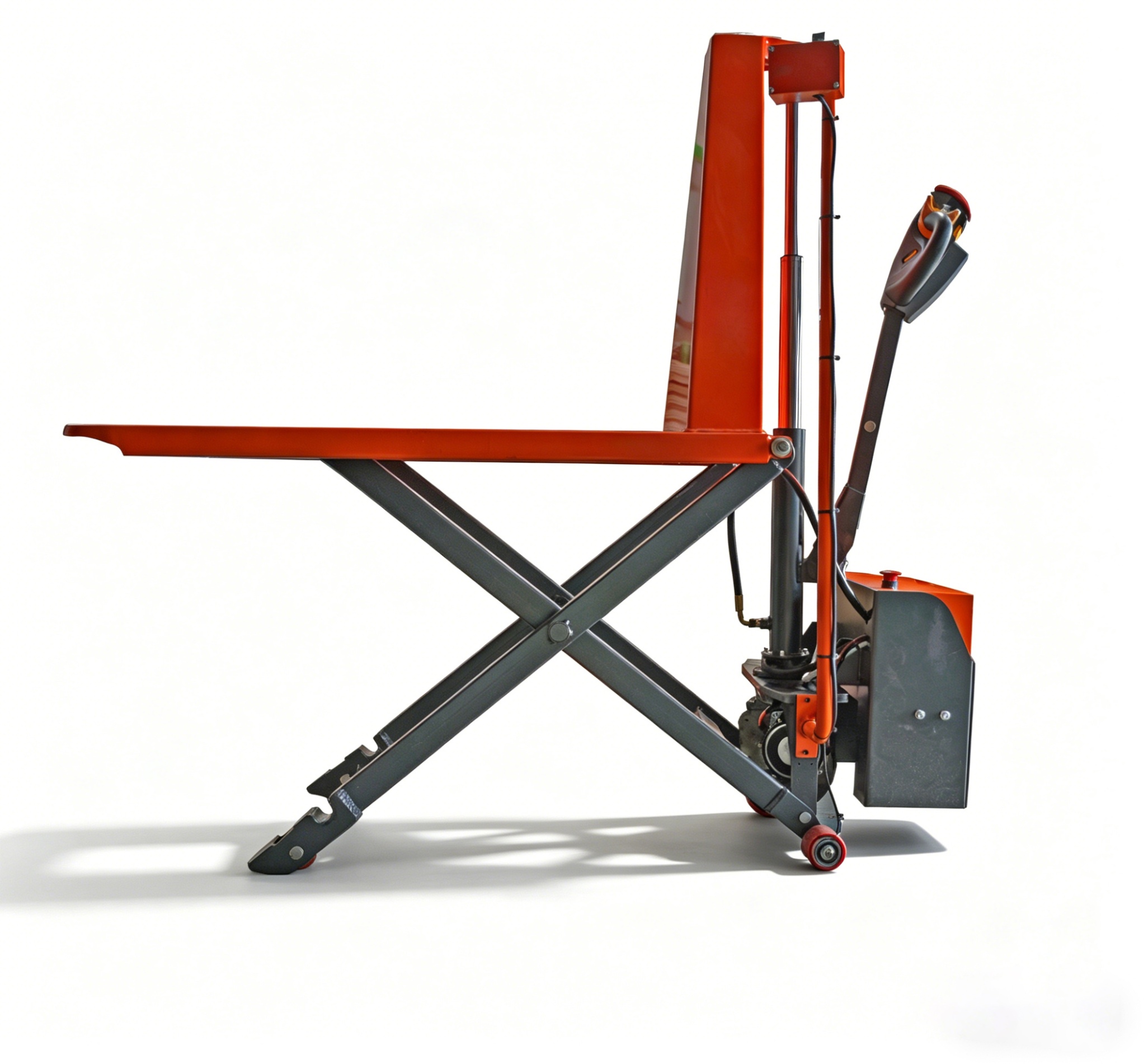

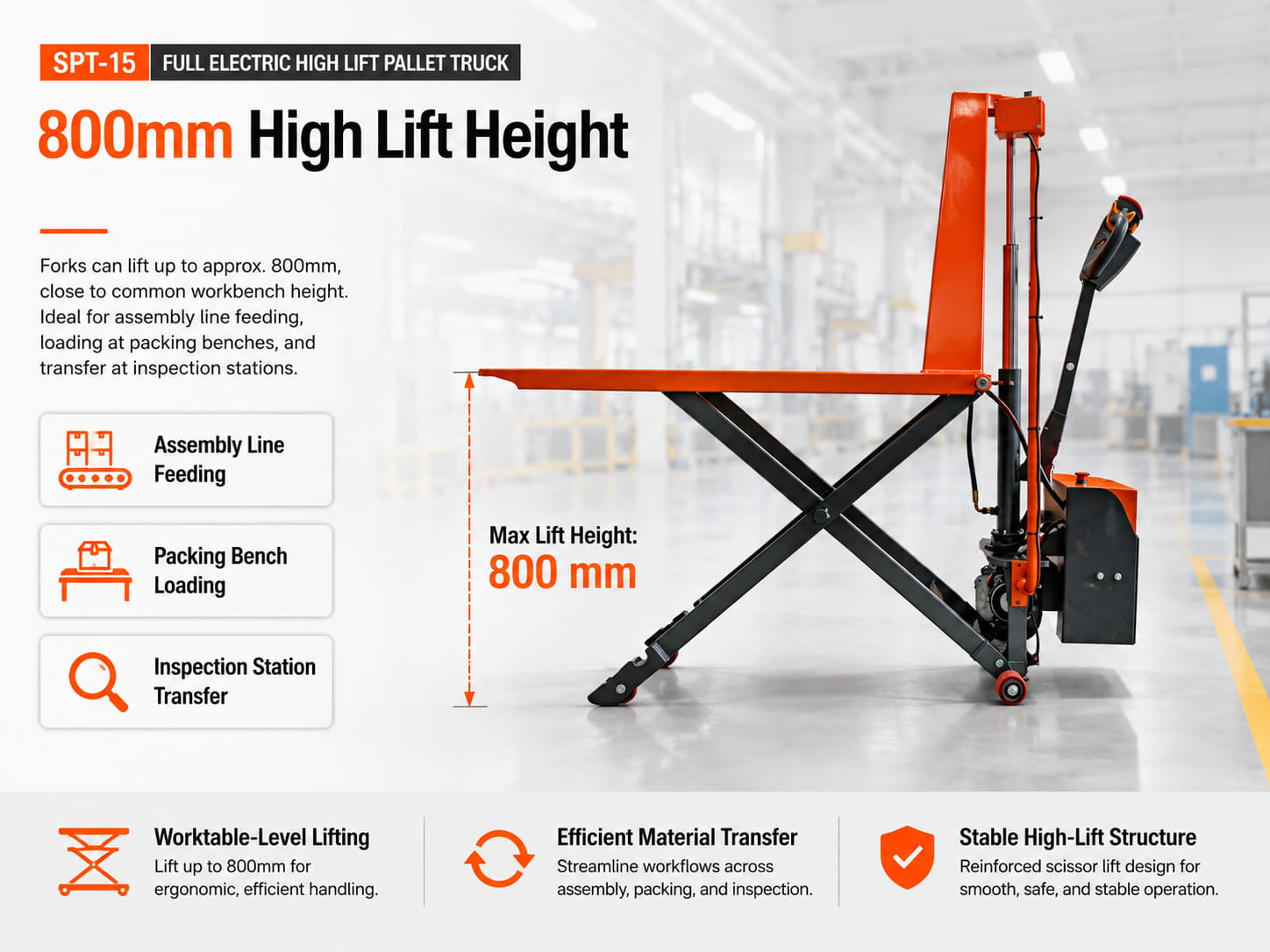

Lift Goods To A Comfortable Working Height
The forks can be raised up to approximately 800mm, close to the height of common workbenches. It helps reduce bending, lifting and repeated manual handling during assembly, packing and inspection work.
- Max. lift height: 800mm
- Lowered fork height: 85mm
- Lift stroke: ≥715mm
- Suitable for packing benches and assembly lines

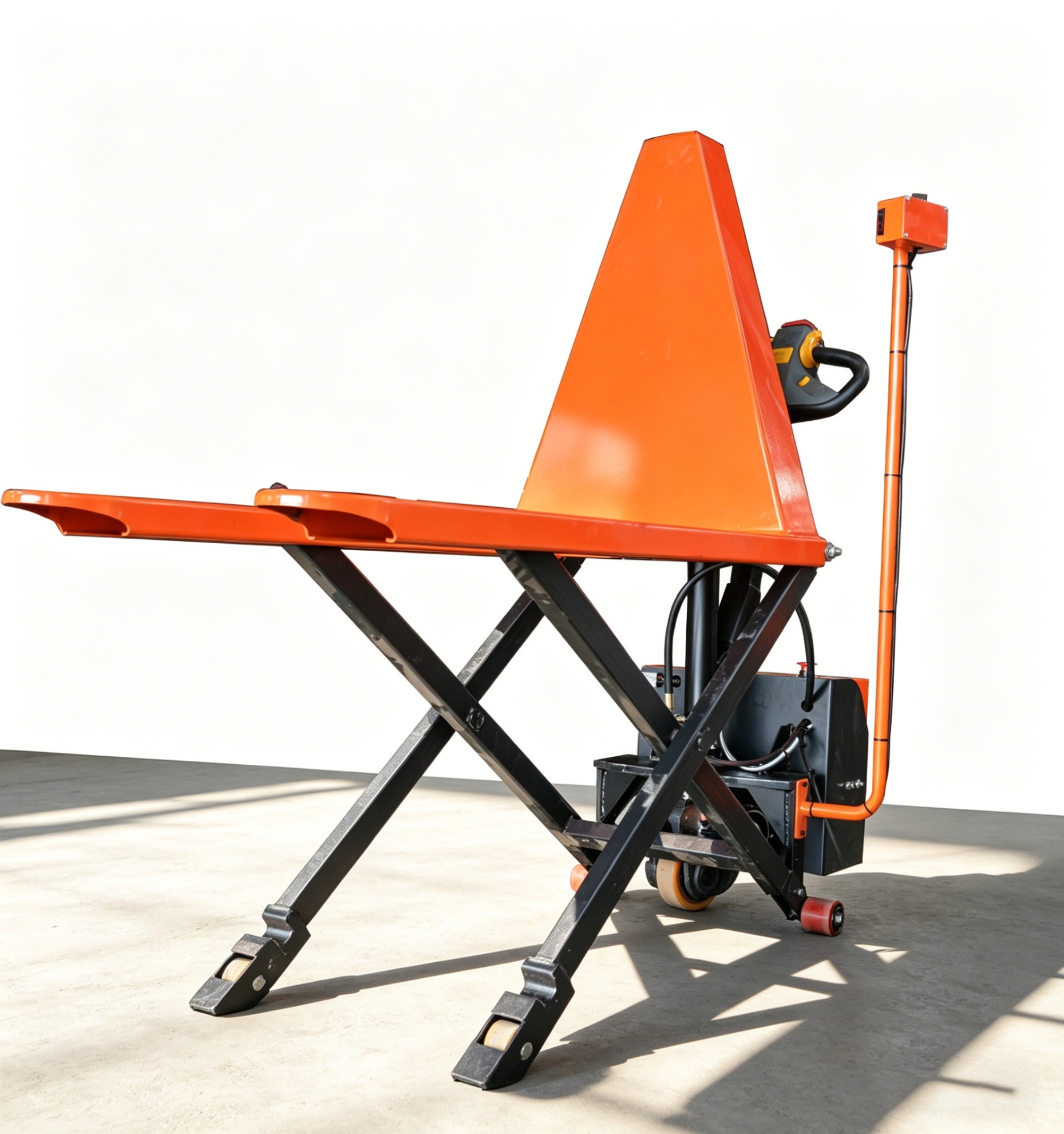

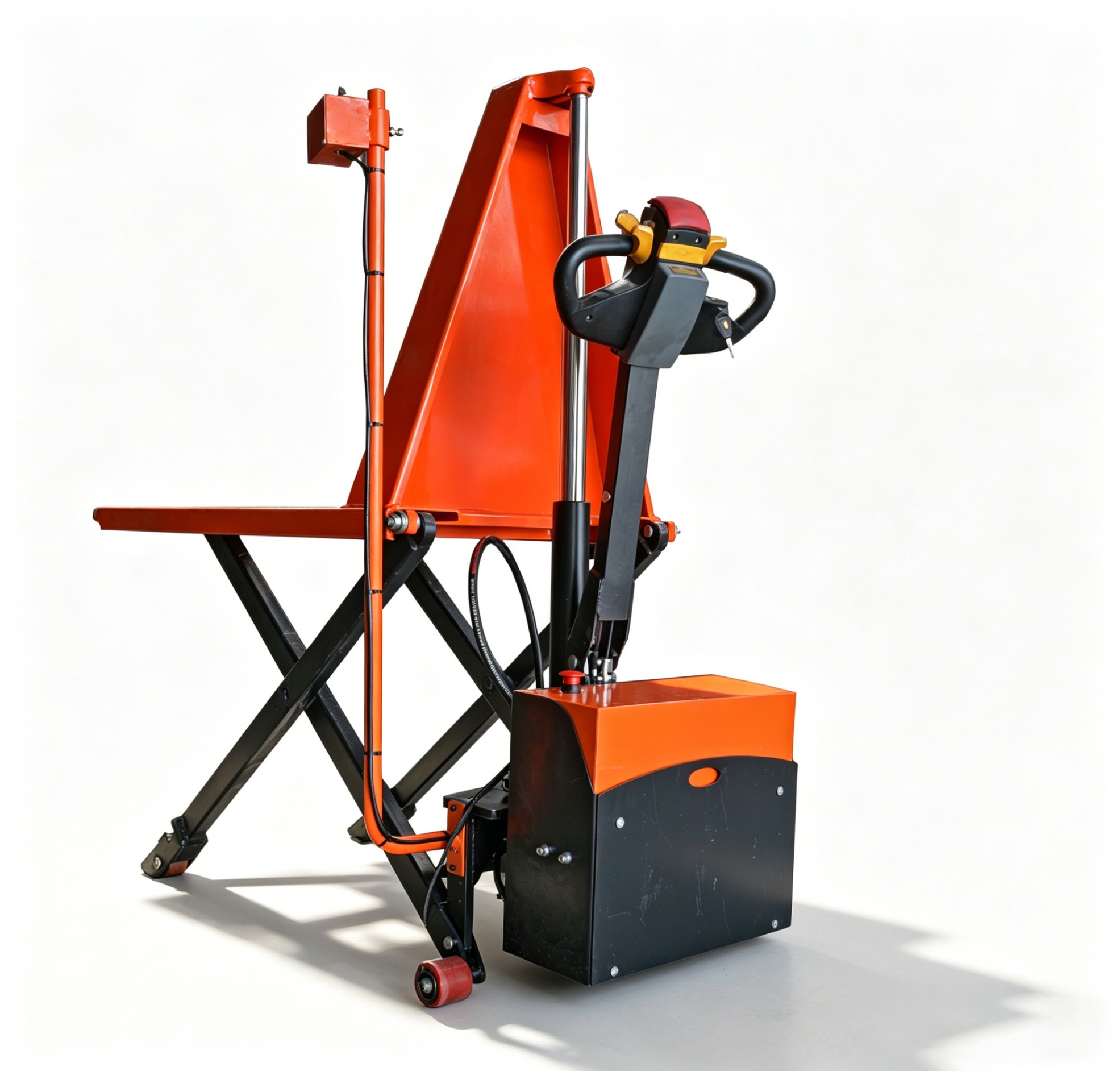

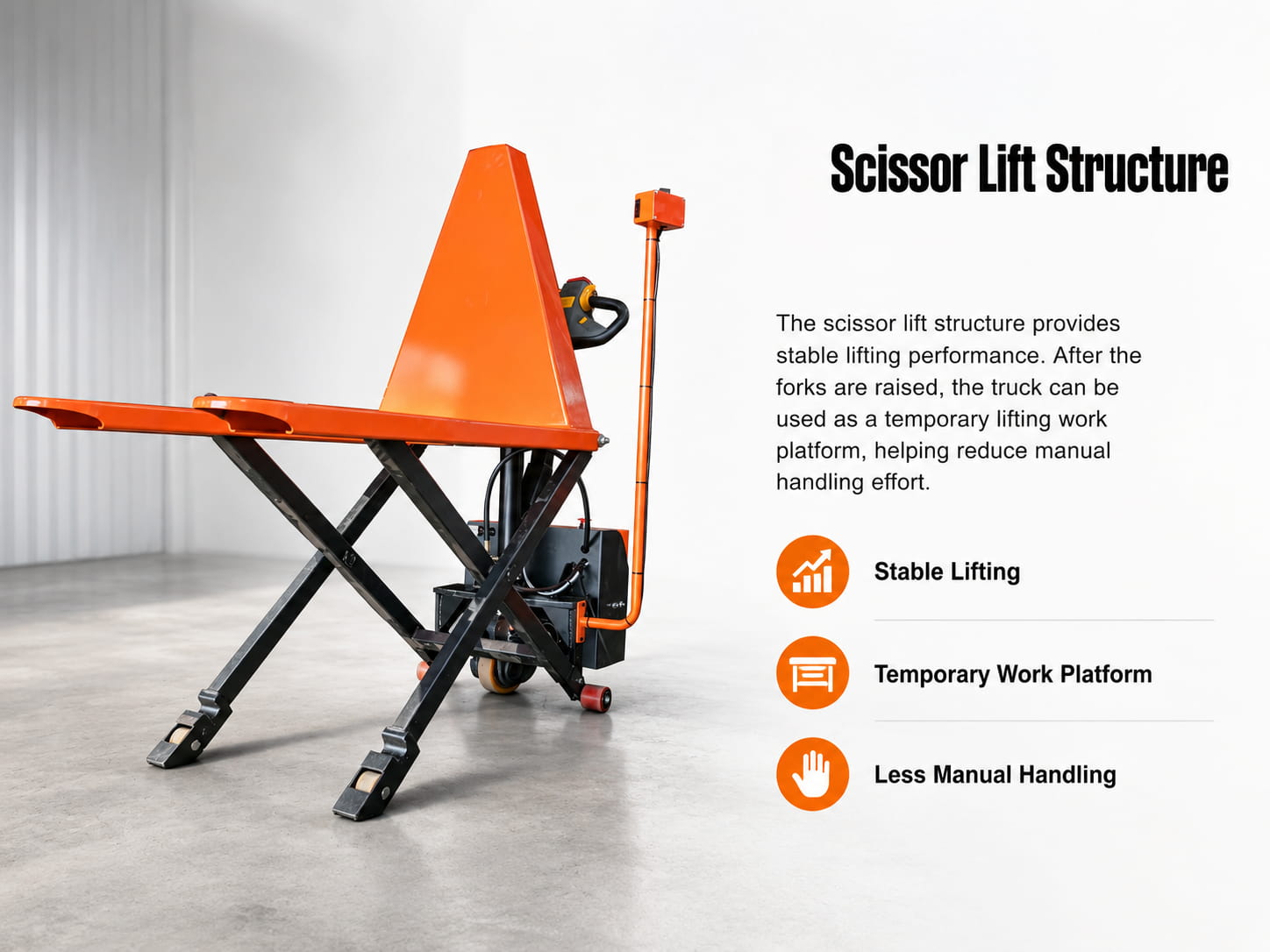

Stable Support For Smooth Lifting
The reinforced scissor structure provides stable lifting performance. After the forks are raised, the truck can also be used as a temporary lifting work platform for loading, unloading and material positioning.
- Stable scissor lifting structure
- Can be used as a temporary work platform
- Helps reduce manual lifting effort
- Reliable support for palletized goods

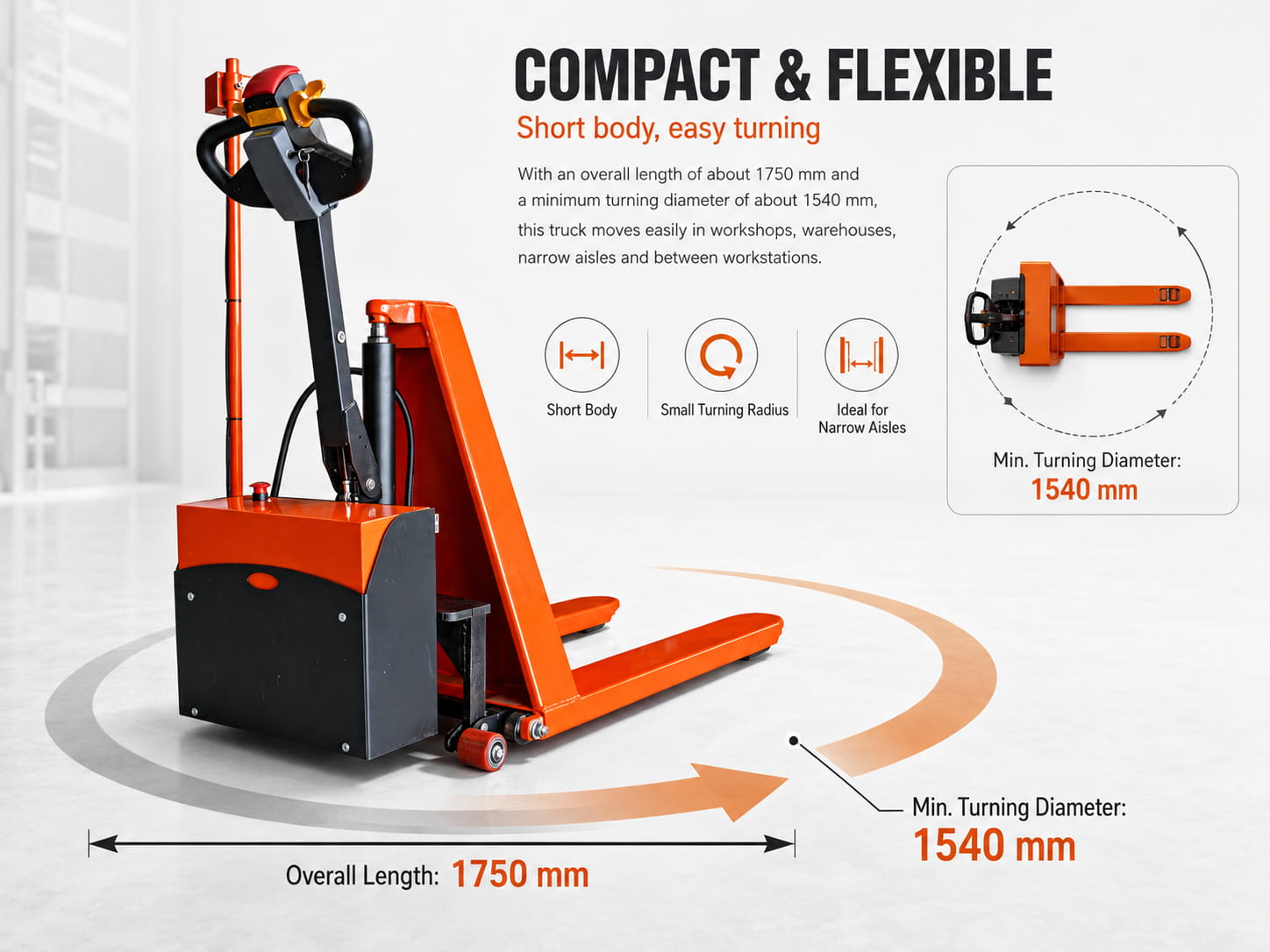

Short Body, Easy Turning
With an overall length of about 1750mm and a minimum turning diameter of about 1540mm, the SPT-15 is compact and easy to maneuver in workshops, warehouses, narrow aisles and workstation transfer areas.
- Overall length: 1750mm
- Minimum turning diameter: 1540mm
- Fork outer width: 540 / 680mm
- Suitable for narrow aisles and compact spaces

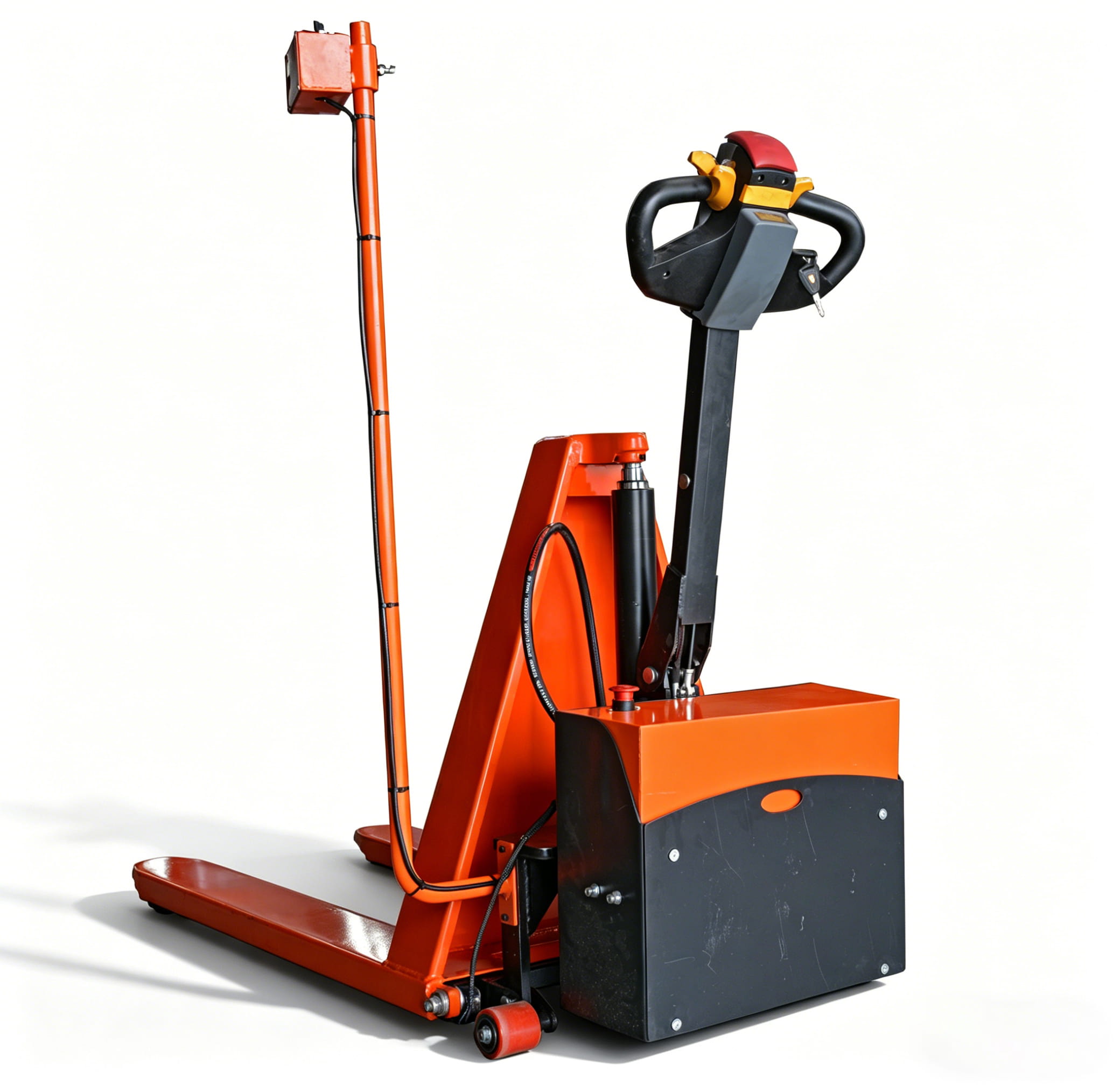

Scissor Pallet Truck SPT-15
Full electric high lift scissor pallet truck for pallet handling, workstation feeding, assembly line loading and warehouse material transfer.
| Item | Specification |
|---|---|
| Basic Information | |
| Product Name | Scissor Pallet Truck SPT-15 |
| Operation Type | Full Electric Drive & Lift |
| Rated Load | 1500kg |
| Fork & Lifting Parameters | |
| Lowered Fork Height | 85mm |
| Max. Lift Height | 800mm |
| Max. Lift Stroke | ≥715mm |
| Fork Outer Width | 540 / 680mm |
| Fork Inner Width | 220 / 360mm |
| Fork Size | 1150×160×50mm |
| Overall Dimensions | |
| Overall Length | 1750mm |
| Overall Height | 1280mm |
| Minimum Turning Diameter | 1540mm |
| Wheels | |
| Load Wheel Size | Φ80×70mm |
| Steering Wheel Size | Φ150×50mm |
| Wheel Material | PU / Nylon |
| Power System | |
| Power Unit | 12V / 1.2kW |
| Battery Capacity | 12V / 65Ah |
| Weight & Package | |
| Net Weight | 145 / 148kg |
| Gross Weight, 2 Units / Pallet | 294 / 300kg |
| Package Size | 2300×700×700mm |
